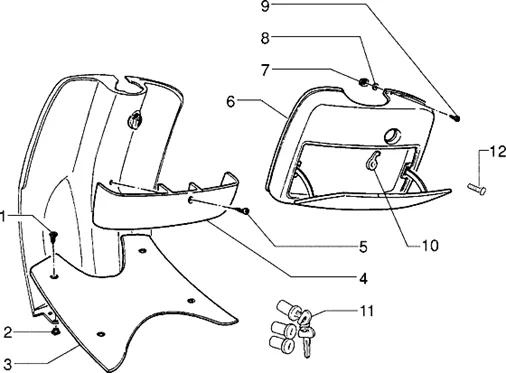

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Châssis : T20 COFFRE À L'AVANT
Coffre à l'avant
Search
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

1
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 4
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

2
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
259577 - VIS

5
P2R reference P2R reference 66038
Maker reference Maker reference 259577

259577 - VIS

More information

Quantity required : 3
272370000C - BOITE A GANT NOIRE

6
P2R reference P2R reference 77381
Maker reference Maker reference 272370000C

272370000C - BOITE A GANT NOIRE

More information

Quantity required : 1
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

7
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 2
003054 - RONDELLE S00305400

8
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

003054 - RONDELLE S00305400

More information

Quantity required : 2
CYLINDER LOCK WITH KEYS "PIAGGIO GENUINE PART" 50 ZIP 1998>2003 -295652-

11
P2R reference P2R reference 77838
Maker reference Maker reference 295652

CYLINDER LOCK WITH KEYS "PIAGGIO GENUINE PART" 50 ZIP 1998>2003 -295652-

More information

Quantity required : 1
259577 - VIS

12
P2R reference P2R reference 66038
Maker reference Maker reference 259577

259577 - VIS

More information

Quantity required : 2
