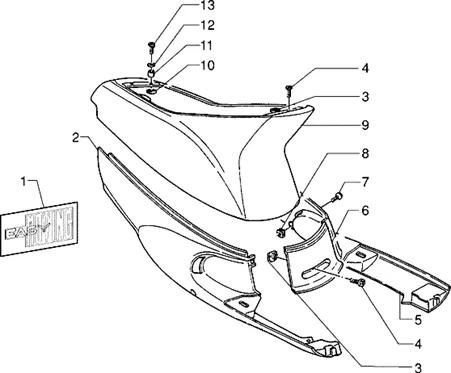

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Châssis : T24 COUVERTURES LATERALE
Couvertures laterale
Search
272376000C - FLANC ARD NOIR

2
P2R reference P2R reference 77382
Maker reference Maker reference 272376000C

272376000C - FLANC ARD NOIR

More information

Quantity required : 1
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

3
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 1
SCREW - 4,2x13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

4
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349-

More information

Quantity required : 2
563334000C - FLANC ARG NOIR ZIP RST

5
P2R reference P2R reference 79907
Maker reference Maker reference 563334000C

563334000C - FLANC ARG NOIR ZIP RST

More information

Quantity required : 1
272377000C - PORTE BOUGIE NOIRE

6
P2R reference P2R reference 77383
Maker reference Maker reference 272377000C

272377000C - PORTE BOUGIE NOIRE

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348-

7
P2R reference P2R reference 66034
Maker reference Maker reference 259348

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348-

More information

Quantity required : 4
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
9158005 - ENTOURAGE SELLE BRUTEX.929900

9
P2R reference P2R reference 93481
Maker reference Maker reference 9158005

9158005 - ENTOURAGE SELLE BRUTEX.929900

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
016667 - RONDELLE

12
P2R reference P2R reference 110672
Maker reference Maker reference 0166675

016667 - RONDELLE

More information

Quantity required : 2
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

13
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 2
