Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

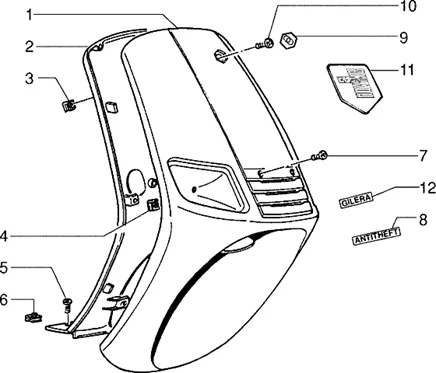

Châssis : T19 TABLIERS-MASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T19.PNG)
1 |
9159005 - FACE AVT BRUT More informationQuantity required : 1 |
||||||
|
2 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 ZIP RST 1998>2004 -575696000C- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
5 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348- More informationQuantity required : 3 |
||||||
|
8 |
296819 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348- More informationQuantity required : 1 |
