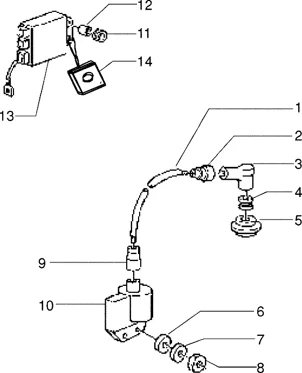

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005 GILERA

Connexions électriques : T36/A DISPOSITIFS ELECTRIQUES POUR VÉHICULES AVEC ANTISTART
Dispositifs electriques pour véhicules avec antistart
Search
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341-

1
P2R reference P2R reference 65668
Maker reference Maker reference 0803415

HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341-

More information

Quantity required : 1
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50cc 2 STROKE RANGE -825186-

2
P2R reference P2R reference 68522
Maker reference Maker reference 825186

SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186-

More information

Quantity required : 1
103936 - ANTIPARASITE

3
P2R reference P2R reference 74503
Maker reference Maker reference 103936

103936 - ANTIPARASITE

More information

Quantity required : 1
114164 - CAPUCHON

4
P2R reference P2R reference 74563
Maker reference Maker reference 114164

114164 - CAPUCHON

More information

Quantity required : 1
288633 - COLLIER

5
P2R reference P2R reference 77566
Maker reference Maker reference 288633

288633 - COLLIER

More information

Quantity required : 1
WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686-

6
P2R reference P2R reference 65428
Maker reference Maker reference 0166865

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686-

More information

Quantity required : 1
016405 - RONDELLE S01640500

7
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 1
020105 - ECROU S02010500

8
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

020105 - ECROU S02010500

More information

Quantity required : 1
231571 - CAPUCHON

9
P2R reference P2R reference 65966
Maker reference Maker reference 231571

231571 - CAPUCHON

More information

Quantity required : 1
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" PIAGGIO 125 TYPHOON 2stroke, SKIPPER 2stroke, SFERA, VESPA ET4, HEXAGON 2stroke 1998>2005, 50 TYPHOON, ZIP 1998>2005/GILERA 125 RUNNER 2stroke 1998>2005, MOJITO 1998>2005 -826115-

10
P2R reference P2R reference 68584
Maker reference Maker reference 826115

IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" PIAGGIO 125 TYPHOON 2STROKE, SKIPPER 2STROKE, SFERA, VESPA ET4, HEXAGON 2STROKE 1998>2005, 50 TYPHOON, ZIP 1998>2005/GILERA 125 RUNNER 2STROKE 1998>2005, MOJITO 1998>2005 -826115-

More information

Quantity required : 1
217163 - SILENBLOC

11
P2R reference P2R reference 65932
Maker reference Maker reference 217163

217163 - SILENBLOC

More information

Quantity required : 2
217164 - ENTRETOISE

12
P2R reference P2R reference 65933
Maker reference Maker reference 217164

217164 - ENTRETOISE

More information

Quantity required : 2
