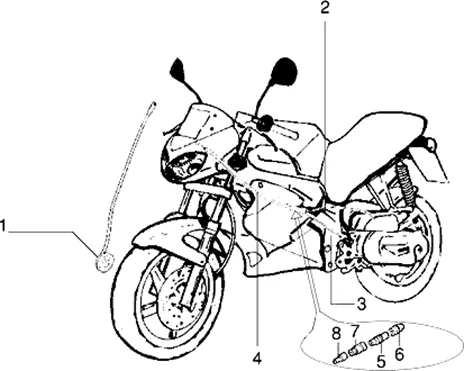

Vehicle Exploded View - GILERA DNA 50 GILERA

Transmisisons : T38 TRANSMISSIONS
Transmissions
Search
SPEEDOMETER ENCODER "PIAGGIO GENUINE PART" 50 NRG 2006>, 125-250 X9/GILERA 50-125 RUNNER -56435R-

1
P2R reference P2R reference 67052
Maker reference Maker reference 56435R

SPEEDOMETER ENCODER "PIAGGIO GENUINE PART" 50 NRG 2006>, 125-250 X9/GILERA 50-125 RUNNER -56435R-

More information

Quantity required : 1
THROTTLE CABLE KIT (DISPATCHER TO CARB) "PIAGGIO GENUINE PARTS" GILERA 50 DNA -582870-

2
P2R reference P2R reference 81836
Maker reference Maker reference 582870

THROTTLE CABLE KIT (DISPATCHER TO CARB) "PIAGGIO GENUINE PARTS" GILERA 50 DNA -582870-

More information

Quantity required : 1
THROTTLE CABLE KIT (DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2006>2010/GILERA 50 DNA -582449-

3
P2R reference P2R reference 81761
Maker reference Maker reference 582449

THROTTLE CABLE KIT (DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2006>2010/GILERA 50 DNA -582449-

More information

Quantity required : 1
581903 - TRANSMISS. DE GAZ MODELE LONG

4
P2R reference P2R reference 81667
Maker reference Maker reference 581903

581903 - TRANSMISS. DE GAZ MODELE LONG

More information

Quantity required : 1
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

5
P2R reference P2R reference 66083
Maker reference Maker reference 269571

THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571-

More information

Quantity required : 1
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271976-

6
P2R reference P2R reference 66108
Maker reference Maker reference 271976

SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976-

More information

Quantity required : 1
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -271977-

7
P2R reference P2R reference 66109
Maker reference Maker reference 271977

SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977-

More information

Quantity required : 1
