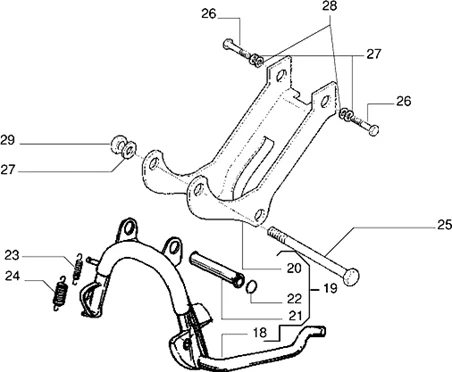

Vehicle Exploded View - GILERA DNA 50 GILERA

Châssis : T22 BEQUILLE
Bequille
Search
582082 - BEQUILLE

18
P2R reference P2R reference 81694
Maker reference Maker reference 582082

582082 - BEQUILLE

More information

Quantity required : 1
582081 - BEQUILLE

19
P2R reference P2R reference 81693
Maker reference Maker reference 582081

582081 - BEQUILLE

More information

Quantity required : 1
582123 - SUPPORT

20
P2R reference P2R reference 81706
Maker reference Maker reference 582123

582123 - SUPPORT

More information

Quantity required : 1
582126 - PIVOT

21
P2R reference P2R reference 81707
Maker reference Maker reference 582126

582126 - PIVOT

More information

Quantity required : 1
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -271695-

22
P2R reference P2R reference 66102
Maker reference Maker reference 271695

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695-

More information

Quantity required : 2
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

23
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940-

More information

Quantity required : 1
560185 - RESSORT

24
P2R reference P2R reference 66994
Maker reference Maker reference 560185

560185 - RESSORT

More information

Quantity required : 1
SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -030080-

25
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080-

More information

Quantity required : 1
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

27
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 3
MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

28
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

More information

Quantity required : 2
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

29
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1
