Vehicle Exploded View - GILERA DNA 50
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

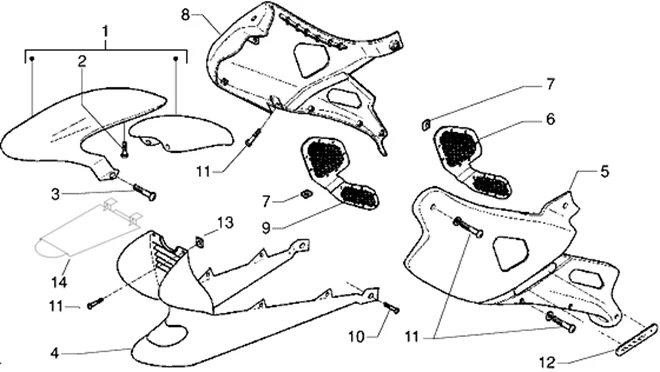

Châssis : T24 COUVERTURES LATERALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T24.PNG)
1 |
9701215 - GUARDE-BOUE AVANT BRUT More informationQuantity required : 1 |
||||||
|
1 |
9701215090 - GARDE BOUE AV NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 DNA YELLOW 384 -97012150G9- More informationQuantity required : 1 |
||||||
|
1 |
97012150R7 - GARDE BOUE AV ROUGE 894 DNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
2 |
268596 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 1 |
||||||
|
4 |
SPOILER "PIAGGIO GENUINE PART" GILERA DNA 50-125 1998>2005 -970124000C- More informationQuantity required : 1 |
||||||
|
5 |
97011450R7 - FLANC AVG ROUGE 894 DNA More informationQuantity required : 1 |
||||||
|
5 |
9701145 - LATERALE AV. More informationQuantity required : 1 |
||||||
|
5 |
9701145033 - FLANC AVG JAUNE 957 DNA More informationQuantity required : 1 |
||||||
|
5 |
9701145090 - FLANC AVG NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
6 |
970115 - GRILLE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
7 |
259539 - CLIPS More informationQuantity required : 1 |
||||||
|
8 |
FRONT RIGHT SIDE BODY "PIAGGIO GENUINE PART" PIAGGIO GILERA 50-125 DNA RED 894 -97011750R7- More informationQuantity required : 1 |
||||||
|
8 |
97011750G9 - FLANC AVD JAUNE 384 DNA More informationQuantity required : 1 |
||||||
|
8 |
9701175090 - FLANC AVD NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
8 |
9701175033 - FLANC AVD JAUNE 957 DNA More informationQuantity required : 1 |
||||||
|
9 |
970118 - GRILLE DRT More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
11 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
12 |
SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
||||||
|
14 |
577222 - GARDE-BOUE INFERIEUR ARR. M26-C27 More informationQuantity required : 1 |
