Vehicle Exploded View - GILERA DNA 50
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

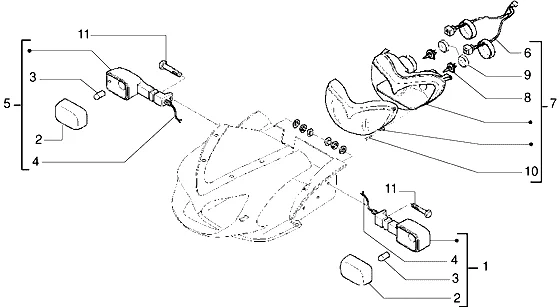

Connexions électriques : T41 PROJECTEUR-CLIGNOTANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T41.png)
1 |
581803 - IND. DIRCT. AVG More informationQuantity required : 1 |
||||||
|
2 |
LENS FOR FLASHER - LEFT OR RIGHT -"PIAGGIO GENUINE PART" PIAGGIO GILERA 50 DNA -582244- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
3 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746- More informationQuantity required : 2 |
||||||
|
4 |
582248 - FAISCEAU CABLES C30 CLIGNOTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/4/5/img/81645.jpg)
5 |
581804 - IND.DIRECT. AVD More informationQuantity required : 1 |
||||||
|
5 |
583299 - GROUPE CABLES More informationQuantity required : 1 |
||||||
|
6 |
583299 - GROUPE CABLES More informationQuantity required : 1 |
||||||
|
6 |
582400 - GROUPE CABLES More informationQuantity required : 1 |
||||||
|
7 |
583303000C - PHARE DNA More informationQuantity required : 1 |
||||||
|
7 |
5833040090 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.JPG)
8 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
9 |
253327 - PORTE AMPOULE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
11 |
582469 - VIS More informationQuantity required : 2 |
