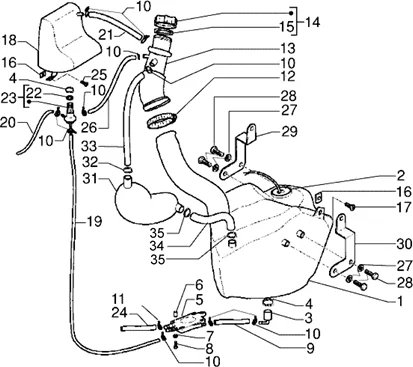

Châssis : T29 RESERVOIR CARBURANT-DEGAZEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T29.PNG)
2 |
CM075605 - JAUGE A HUILE More informationQuantity required : 1 |
||||||
|
3 |
574629 - RACCORD ESSENCE FX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
4 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
5 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/5/img/65805.jpg)
6 |
184400 - ENTRETOISE AR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
7 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
8 |
224640 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
10 |
CM002904 - COLLIER More informationQuantity required : 7 |
||||||
|
11 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/1/img/72871.JPG)
12 |
CM001910 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/4/8/img/81148.jpg)
13 |
FUEL TANK FILLER PIPE "PIAGGIO GENUINE PART" GILERA 50 DNA -577255- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/7/img/78087.jpg)
14 |
299913 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
15 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
17 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
19 |
DEPRESSION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -1R000158- More informationQuantity required : 1 |
||||||
|
21 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
22 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868- More informationQuantity required : 1 |
||||||
|
23 |
574629 - RACCORD ESSENCE FX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
24 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432- More informationQuantity required : 1 |
||||||
|
25 |
257404 - VIS More informationQuantity required : 1 |
||||||
|
26 |
CM001209 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
27 |
006976 - RONDELLE S00697600 More informationQuantity required : 4 |
||||||
|
28 |
031084 - BOULON More informationQuantity required : 4 |
||||||
|
29 |
576786 - ETRIER More informationQuantity required : 1 |
||||||
|
30 |
576787 - ETRIER More informationQuantity required : 1 |
||||||
|
31 |
576777 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.JPG)
32 |
CM001909 - COLLIER More informationQuantity required : 1 |
||||||
|
33 |
576896 - TUBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
35 |
CM001905 - COLLIER More informationQuantity required : 2 |
