Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

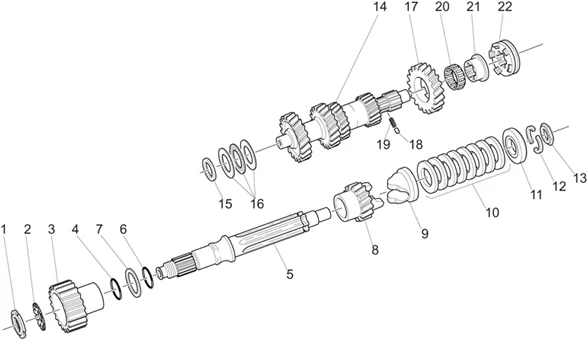

Moteur : 34.14 ARBRE PRIMAIRE BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_34.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/3/0/img/132630.jpg)
1 |
RING (REAR) FOR CLUTCH SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU93601022- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/0/img/132700.jpg)
2 |
GU95028022 - RONDELLE More informationQuantity required : 1 |
||||||
3 |
GU03211630 - CORPO INTERNO FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/6/img/130536.jpg)
3 |
CLUTCH SHAFT GEAR "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100 OLDER MOTORISATIONS -GU30081810- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/8/img/132228.jpg)
4 |
GU90706235 - JOINT TORIQUE 23,52X1,78 More informationQuantity required : 1 |
||||||
|
5 |
GU14210702 - ARBRE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
6 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
7 |
GU14218401 - RONDELLE DISTRIBUTION HUILE More informationQuantity required : 1 |
||||||
|
8 |
GU03211160 - INGRAN.RINVIO Z=17 More informationQuantity required : 1 |
||||||
|
9 |
GU03211260 - MANICOTTO More informationQuantity required : 1 |
||||||
|
10 |
GU04211500 - RESSORT A GODET More informationQuantity required : 8 |
||||||
|
11 |
GU03211660 - PIATTELLO More informationQuantity required : 1 |
||||||
|
12 |
GU12211700 - DEMI-CLAVETTES More informationQuantity required : 2 |
||||||
|
13 |
GU14219401 - CALE More informationQuantity required : 1 |
||||||
|
14 |
GU14210513 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
15 |
GU18211050 - RONDELLE EVENTAIL SP.2 More informationQuantity required : 1 |
||||||
|
15 |
GU18211051 - RONDELLE EVENTAIL SP.2,1 More informationQuantity required : 1 |
||||||
|
15 |
GU18211052 - RONDELLE EVENTAIL SP.2,2 More informationQuantity required : 1 |
||||||
|
15 |
GU18211054 - RONDELLE EVENTAIL SP.2,4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/6/5/img/99865.jpg)
16 |
CLUTCH THRUST BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -976532- More informationQuantity required : 1 |
||||||
|
17 |
GU03212000 - INGRANAGGIO 5A AP 5 INN.Z=28 More informationQuantity required : 1 |
||||||
|
18 |
GU92296750 - ROULEAU More informationQuantity required : 1 |
||||||
|
19 |
GU94321051 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/3/2/img/132432.jpg)
20 |
GU92251030 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
21 |
GU14212210 - DOUILLE 5A AP More informationQuantity required : 1 |
||||||
|
22 |
GU30231525 - BALADEUR 5A More informationQuantity required : 1 |
