Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

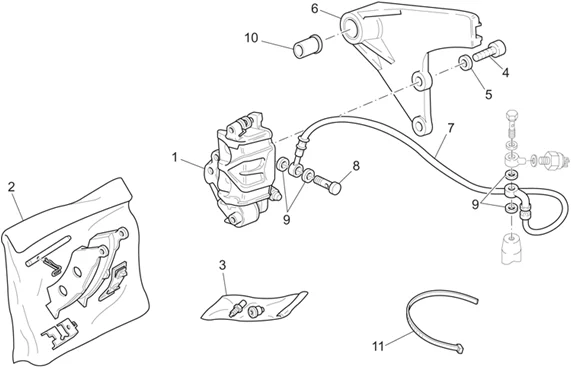

Chassis : 33.33 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.33.PNG)
1 |
GU03653001 - PINCE FREIN AR OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/4/1/img/128241.jpg)
2 |
GU03654600 - KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
3 |
AP8113549 - PURGE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
4 |
AP8150195 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 2 |
||||||
|
6 |
GU03635851 - VIS More informationQuantity required : 1 |
||||||
|
7 |
GU03657540 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
8 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
9 |
GU25656100 - GARNITURE More informationQuantity required : 4 |
||||||
|
10 |
GU03634850 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
11 |
GU93304390 - COLLIER More informationQuantity required : 1 |
