Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

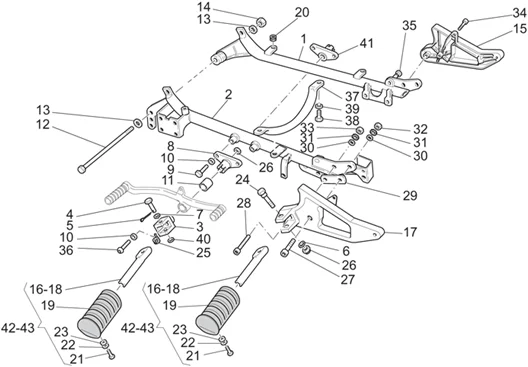

Chassis : 33.20 BRAS-REPOSE PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.20.PNG)
1 |
GU03420331 - CULLA DX More informationQuantity required : 1 |
||||||
|
2 |
GU03422130 - CULLA SX More informationQuantity required : 1 |
||||||
|
4 |
GU23442210 - PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
5 |
GU95401215 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
6 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 2 |
||||||
|
7 |
GU95100250 - RONDELLE 8,5X18X0,5 More informationQuantity required : 2 |
||||||
|
8 |
GU03443960 - SUPPORTO PEDANA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
9 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.JPG)
10 |
658837 - RONDELLE More informationQuantity required : 6 |
||||||
|
11 |
GU03444230 - DISTANZIALE More informationQuantity required : 2 |
||||||
|
12 |
GU03429500 - PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/9/img/132689.JPG)
13 |
GU95008313 - RONDELLE 13X24X2,5 More informationQuantity required : 2 |
||||||
|
14 |
GU92606512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
15 |
GU03443545 - PIASTRA DX NERO More informationQuantity required : 1 |
||||||
|
16 |
GU23440710 - TUYAU REP.-PIEDS AV.D. More informationQuantity required : 2 |
||||||
|
17 |
GU03446045 - PIASTRA SX NERO More informationQuantity required : 1 |
||||||
|
18 |
GU23441810 - TUYAU REP.-PIEDS AV.G. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/6/2/8/img/102628.jpg)
19 |
FOOTREST RUBBER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA2002>2008, 1100 CALIFORNIA 1999>2004 -GU03443240- More informationQuantity required : 4 |
||||||
|
20 |
GU93180117 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
21 |
GU98084314 - VIS M6X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
22 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 4 |
||||||
|
23 |
GU91180602 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
24 |
GU03442200 - VITE FISS More informationQuantity required : 2 |
||||||
|
25 |
GU03441130 - MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.JPG)
26 |
GU92640508 - ECROU More informationQuantity required : 4 |
||||||
|
27 |
GU98683635 - VIS M12X35 More informationQuantity required : 1 |
||||||
|
28 |
GU98681650 - VIS More informationQuantity required : 2 |
||||||
|
29 |
GU17444250 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
30 |
GU95100414 - RONDELLE More informationQuantity required : 4 |
||||||
|
31 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 4 |
||||||
|
32 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
33 |
GU92602312 - ECROU More informationQuantity required : 3 |
||||||
|
34 |
GU98683640 - VIS M12X40 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
35 |
GU93180245 - BOUCHON More informationQuantity required : 1 |
||||||
|
36 |
GU98230851 - VIS More informationQuantity required : 2 |
||||||
|
37 |
GU30425260 - TRAVERSE COMM.BRAS DUBERCEAU More informationQuantity required : 1 |
||||||
|
38 |
GU98350522 - VIS More informationQuantity required : 2 |
||||||
|
39 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
40 |
GU95129130 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
41 |
GU03443961 - SUPPORTO PEDANA DX More informationQuantity required : 1 |
||||||
|
42 |
GU03440240 - PEDANA DX More informationQuantity required : 1 |
||||||
|
43 |
GU03441340 - PEDANA SX More informationQuantity required : 1 |
