Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

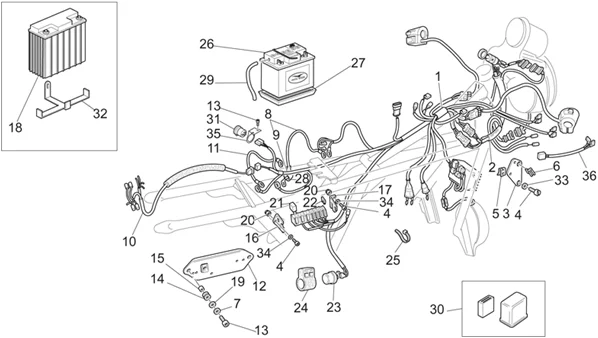

Chassis : 33.42 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.42.PNG)
1 |
GU03747156 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
GU03747270 - CABLAGE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
3 |
GU30749760 - PLAQUE More informationQuantity required : 1 |
||||||
|
4 |
GU98682310 - VIS More informationQuantity required : 4 |
||||||
|
5 |
GU28576590 - CLIP More informationQuantity required : 2 |
||||||
|
6 |
GU30922260 - CLIP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
7 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 8 |
||||||
|
8 |
GU03748440 - CABLAGE More informationQuantity required : 1 |
||||||
|
9 |
GU03707140 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
GU03753171 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
11 |
GU02747901 - CABLAGGIO MASSA-BATTERIA More informationQuantity required : 1 |
||||||
|
12 |
GU03746370 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/0/img/133180.jpg)
13 |
GU98682318 - VIS More informationQuantity required : 4 |
||||||
|
14 |
GU91551080 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
15 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
16 |
GU304771015 - BRIDE DROITE More informationQuantity required : 1 |
||||||
|
17 |
GU30477200 - PLAQUE G. More informationQuantity required : 1 |
||||||
|
18 |
GU03704571 - BATTERIE YUASA 12V-18AH More informationQuantity required : 1 |
||||||
|
18 |
GU03704550 - BATTERIE 12V-16AH More informationQuantity required : 1 |
||||||
|
19 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 3 |
||||||
|
20 |
GU92630707 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
21 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
|
21 |
GU01732530 - RELE SIEMENS A302B1005 More informationQuantity required : 1 |
||||||
|
22 |
GU28742558 - FUSIBLE 5A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
22 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 1 |
||||||
|
22 |
GU28742561 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.JPG)
22 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
23 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
24 |
GU17751200 - BLOC More informationQuantity required : 1 |
||||||
|
25 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 56 |
||||||
|
25 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 6 |
||||||
|
26 |
GU03704571 - BATTERIE YUASA 12V-18AH More informationQuantity required : 1 |
||||||
|
27 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
28 |
GU30759600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
29 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
30 |
AP8127286 - CLIGNOTEMENT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
30 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
31 |
B063212 - PRISE More informationQuantity required : 1 |
||||||
|
32 |
GU03116745 - SUPPORTO BATTERIA More informationQuantity required : 1 |
||||||
|
32 |
977387 - STAFFA FISS BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
33 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
34 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
35 |
GU03785470 - PLAQUE More informationQuantity required : 1 |
||||||
|
36 |
GU31756937 - PLAQUETTE More informationQuantity required : 1 |
