Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

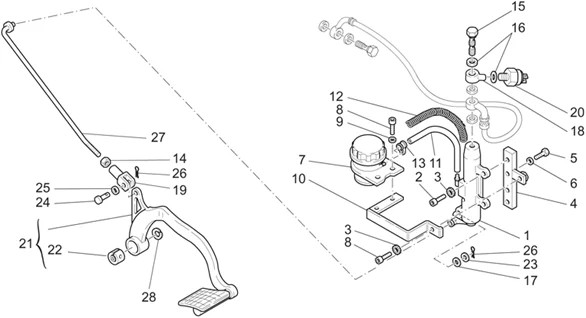

Chassis : 33.34 POMPE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.34.PNG)
1 |
GU31666990 - MAIT.CYL.FREIN AR More informationQuantity required : 1 |
||||||
|
2 |
GU98682320 - VIS M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
3 |
AP8152105 - RONDELLE More informationQuantity required : 3 |
||||||
|
4 |
GU30666760 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
GU98084412 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
7 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
8 |
GU98682310 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 2 |
||||||
|
10 |
GU30666060 - PLAQ.RESERV.HUILE More informationQuantity required : 1 |
||||||
|
11 |
GU30666260 - TUYAU More informationQuantity required : 1 |
||||||
|
12 |
GU30665860 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
14 |
GU92609007 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
GU95990044 - VIS PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
16 |
GU25656100 - GARNITURE More informationQuantity required : 2 |
||||||
|
17 |
GU95129131 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
GU19655265 - RACCORD More informationQuantity required : 1 |
||||||
|
19 |
GU95740175 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
20 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
|
21 |
Levier de frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/2/7/img/130927.jpg)
22 |
GU30678160 - BAGUE More informationQuantity required : 1 |
||||||
|
23 |
GU95100173 - RONDELLE More informationQuantity required : 1 |
||||||
|
24 |
GU95780267 - GOUPILLE More informationQuantity required : 1 |
||||||
|
25 |
GU95129111 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
GU95500221 - GOUPILLE More informationQuantity required : 2 |
||||||
|
27 |
GU03675170 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
28 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
