Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV Pi Cat 1100 2003-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

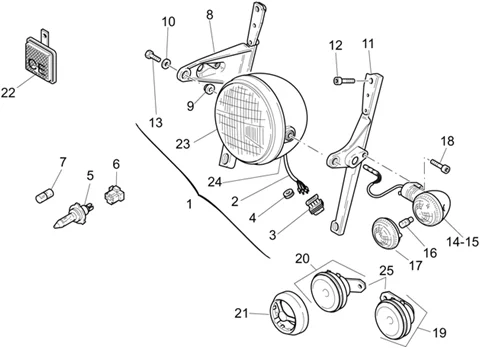

Chassis : 33.41 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/478/California_EV_Pi_Cat_1100_2003-2005_33.41.PNG)
1 |
GU03740531 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
2 |
GU02746900 - CABLAGGIO More informationQuantity required : 1 |
||||||
|
3 |
GU01756100 - CONNETTORE 4 VIE AMP More informationQuantity required : 1 |
||||||
|
4 |
GU91551105 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/0/0/5/img/102005.jpg)
6 |
GU01756220 - PORTALAMPADA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
7 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
8 |
GU03496130 - SUPPORTO DX More informationQuantity required : 1 |
||||||
|
9 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
10 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 2 |
||||||
|
11 |
GU03496230 - SUPPORTO SX More informationQuantity required : 1 |
||||||
|
12 |
GU98692318 - VIS M6X18 More informationQuantity required : 4 |
||||||
|
13 |
GU98064425 - VIS More informationQuantity required : 1 |
||||||
|
14 |
GU03751631 - CLIGNOTANT ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
15 |
GU03751630 - CLIGNOTANT ARRIERE GOUCHE More informationQuantity required : 1 |
||||||
|
16 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
17 |
AP8124111 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
|
18 |
GU98682314 - VIS TCEI M6X14 More informationQuantity required : 2 |
||||||
|
19 |
883462 - CLAXON TONO H More informationQuantity required : 1 |
||||||
|
20 |
883463 - CLAXON TONO L More informationQuantity required : 1 |
||||||
|
21 |
GU03744760 - MASQUE POUR KLAXON More informationQuantity required : 2 |
||||||
|
22 |
GU14781670 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
||||||
|
23 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
23 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
|
24 |
GU03740438 - CALOTTE ARRIERE CHROMEE More informationQuantity required : 1 |
||||||
|
25 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 2 |
