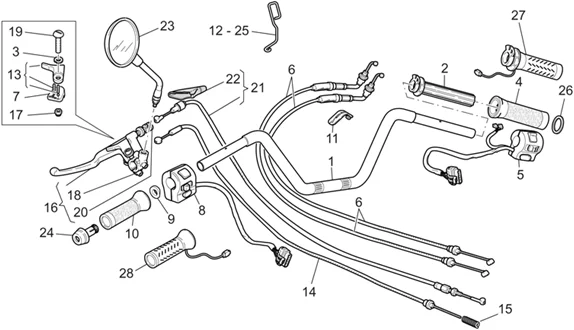

Chassis : 33.39 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/478/California_EV_Pi_Cat_1100_2003-2005_33.39.PNG)
1 |
GU03600311 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
GU03603860 - TUYAU GAZ SANS MANETTE More informationQuantity required : 1 |
||||||
|
3 |
GU27530594 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
GU03603560 - POIGNEE DR. More informationQuantity required : 1 |
||||||
|
5 |
GU03738846 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
5 |
GU03738870 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
6 |
GU03117545 - TRASMISSIONE COMANDO GAS More informationQuantity required : 2 |
||||||
|
7 |
GU27530595 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
8 |
GU03738045 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
9 |
GU03604245 - DOUILLE More informationQuantity required : 1 |
||||||
|
10 |
GU03603060 - POIGNEE GC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
11 |
GU01609630 - FASCETTA L46 MM More informationQuantity required : 2 |
||||||
|
12 |
GU03669000 - OEILLETDROIT GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/3/4/img/64334.jpg)
13 |
00H00902661 - LEVIER More informationQuantity required : 1 |
||||||
|
14 |
GU03132845 - CAVO STARTER More informationQuantity required : 1 |
||||||
|
15 |
GU94321070 - RESSORT More informationQuantity required : 1 |
||||||
|
16 |
GU03605545 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
17 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
18 |
AP8118349 - CAVALIER; More informationQuantity required : 1 |
||||||
|
19 |
GU27604315 - GOUJON DE LEVIER More informationQuantity required : 1 |
||||||
|
20 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
20 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/0/8/img/102408.jpg)
21 |
TRANSMISSION CLUTCH CABLE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU03093070 More informationQuantity required : 1 |
||||||
|
22 |
GU27663815 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968.jpg)
23 |
MIRRORS (PAIR) (FU) "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, V7, V9, NEVADA, GRISO, CALIFORNIA, BREVA, BELLAGIO -97702R- More informationQuantity required : 2 |
||||||
|
23 |
MIRRORS (PAIR) (FU) "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, V7, V9, NEVADA, GRISO, CALIFORNIA, BREVA, BELLAGIO -97702R- More informationQuantity required : 2 |
||||||
|
24 |
GU03602760 - EQUILIBRAGE More informationQuantity required : 2 |
||||||
|
25 |
GU03669001 - OEILLETGAUCHE GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/7/img/130427.jpg)
26 |
GU29606970 - RONDELLE NYLON More informationQuantity required : 1 |
||||||
|
27 |
GU03603370 - POIGNEE RECHAUFFEE DROITE More informationQuantity required : 1 |
||||||
|
28 |
GU03603070 - POIGNEE RECHAUFFEE GAUCHE More informationQuantity required : 1 |
