Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV Pi Cat 1100 2003-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

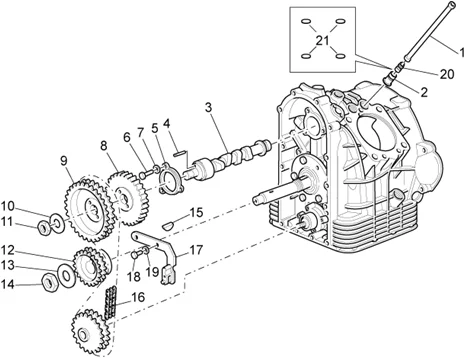

Moteur : 34.04 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/478/California_EV_Pi_Cat_1100_2003-2005_34.04.PNG)
1 |
GU03045030 - ASTA More informationQuantity required : 4 |
||||||
|
2 |
GU03045832 - BICCHIERINO PUNTERIA More informationQuantity required : 4 |
||||||
|
3 |
GU03053333 - ALBERO CAMME PUNT.IDR. More informationQuantity required : 1 |
||||||
|
3 |
GU03053334 - ALBERO CAMME PUNT.IDR. GKH More informationQuantity required : 1 |
||||||
|
4 |
GU14234600 - GOUPILLE More informationQuantity required : 1 |
||||||
|
5 |
GU010540016 - BRIDE More informationQuantity required : 1 |
||||||
|
6 |
GU98084320 - VIS M6X20 More informationQuantity required : 3 |
||||||
|
7 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 3 |
||||||
|
8 |
976538 - RUOTA FONICA DISTRIBUZION More informationQuantity required : 1 |
||||||
|
9 |
GU05054532 - ENGRENAGE DISTRIBUTION More informationQuantity required : 1 |
||||||
|
10 |
GU14433400 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
11 |
GU92750180 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
GU14072001 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/9/img/132739.jpg)
13 |
GU95100837 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/9/img/132479.jpg)
14 |
NUT - FOR TIMING SYSTEM SPROCKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92602525- More informationQuantity required : 1 |
||||||
|
15 |
GU91702355 - CLAVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/6/0/img/128560.jpg)
16 |
TIMING CHAIN "PIAGGIO GENUINE PART" MOTO-GUZZI COMMON TO ALL 2 VALVES ENGINES -GU05058030- More informationQuantity required : 1 |
||||||
|
17 |
GU30057810 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
18 |
GU98082435 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
20 |
887348 - PUNTERIA IDRAULICA More informationQuantity required : 4 |
||||||
|
21 |
GU03048330 - CALIBRATED TABLET More informationQuantity required : 4 |
