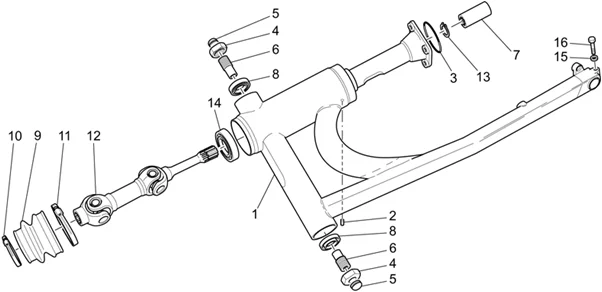

Chassis : 33.17 TRANSMISSION CPL. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/478/California_EV_Pi_Cat_1100_2003-2005_33.17.PNG)
1 |
GU03540255 - FORCELLONE More informationQuantity required : 1 |
||||||
|
2 |
GU98460105 - GOUJON M5X6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
3 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 1 |
||||||
|
4 |
GU03547800 - DADO CIECO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
5 |
GU93180105 - BOUCHON More informationQuantity required : 2 |
||||||
|
6 |
GU03547060 - PERNO More informationQuantity required : 2 |
||||||
|
7 |
GU12327700 - MANCHON More informationQuantity required : 1 |
||||||
|
8 |
GU92249213 - ROULEMENT ROUL.CON. More informationQuantity required : 2 |
||||||
|
9 |
GU18548000 - COLLIER DE PROTECTION More informationQuantity required : 1 |
||||||
|
10 |
GU93306050 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
GU93306070 - COLLIER 70X90X9 More informationQuantity required : 1 |
||||||
|
12 |
GU03328050 - DOPPIO GIUNTO CARDANICO More informationQuantity required : 1 |
||||||
|
13 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
14 |
GU92204230 - ROULEMENT A BILLES 30X62X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
15 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
|
16 |
GU98082540 - VIS M10X40 More informationQuantity required : 1 |
