Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV Pi Cat 1100 2003-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

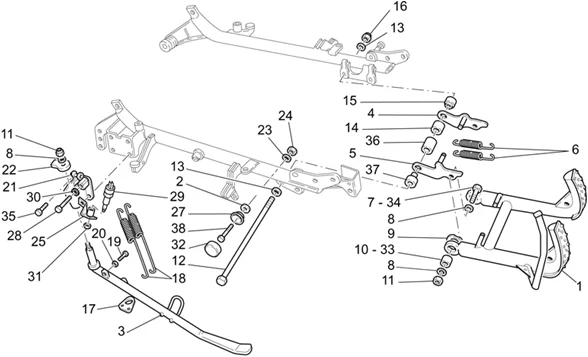

Chassis : 33.21 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/478/California_EV_Pi_Cat_1100_2003-2005_33.21.PNG)
1 |
GU03430311 - CAVALLETTO CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
2 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 1 |
||||||
|
3 |
GU03432070 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
|
4 |
GU03432970 - PIASTRA DX More informationQuantity required : 1 |
||||||
|
5 |
GU03433270 - PIASTRA SX More informationQuantity required : 1 |
||||||
|
6 |
GU03434011 - MOLLA More informationQuantity required : 2 |
||||||
|
7 |
GU98082545 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 3 |
||||||
|
9 |
GU03433400 - ROSETTA More informationQuantity required : 2 |
||||||
|
10 |
GU14433500 - DOUILLE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
11 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 3 |
||||||
|
12 |
GU03429600 - PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/9/img/132689.JPG)
13 |
GU95008313 - RONDELLE 13X24X2,5 More informationQuantity required : 2 |
||||||
|
14 |
GU30429960 - ENTRETOISE INTERNE D. More informationQuantity required : 1 |
||||||
|
15 |
GU30429860 - ENTRETOISE EXTERNE D. More informationQuantity required : 1 |
||||||
|
16 |
GU92606312 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/7/img/151117.jpg)
17 |
SIDE STAND SUPPORT BRACKET SENSOR "PIAGGIO GENUINE PART" MOTO-GUZZI 1000-1100 CALIFORNIA, V50, V60, V75 -GU18432760- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/6/6/img/102566.jpg)
18 |
GU03434070 - MOLLA More informationQuantity required : 2 |
||||||
|
19 |
GU98084216 - VIS EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
GU92606205 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
GU03433470 - BLOCCHETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/5/9/img/102559.jpg)
22 |
GU03432740 - FERMO More informationQuantity required : 1 |
||||||
|
23 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 1 |
||||||
|
24 |
GU92630707 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
25 |
GU03433850 - STAFFA DI SUPPORTO More informationQuantity required : 1 |
||||||
|
27 |
GU391035005 - DISQUE More informationQuantity required : 1 |
||||||
|
28 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 1 |
||||||
|
29 |
GU03759150 - INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.JPG)
30 |
658837 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
31 |
GU92606508 - ECROU M8X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
32 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400- More informationQuantity required : 1 |
||||||
|
33 |
GU30433560 - DOUILLE D. More informationQuantity required : 1 |
||||||
|
34 |
GU98082550 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
35 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 3 |
||||||
|
36 |
GU30429760 - ENTRETOISE INTERNE G. More informationQuantity required : 1 |
||||||
|
37 |
GU14429900 - ENTRETOISE EXTERNE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
38 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
