Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

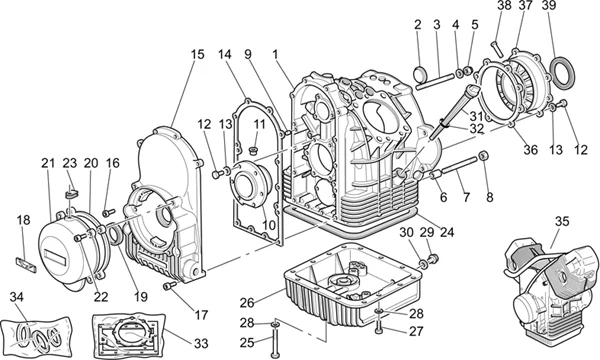

Moteur : 34.01 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_34.01.png)
1 |
GU03000306 - BASAMENTO P.I. N.U.NERO GOFFRATO CALIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/1/img/129101.jpg)
2 |
GU12003900 - DISQUE More informationQuantity required : 1 |
||||||
|
3 |
GU96508066 - VIS SANS TETE M8X66 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
4 |
GU95005308 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
5 |
860651 - ECROU More informationQuantity required : 2 |
||||||
|
6 |
GU12018900 - DOUILLE D'ACCOUPLEMENT More informationQuantity required : 2 |
||||||
|
7 |
GU96508075 - VIS SANS TETE M8X75 More informationQuantity required : 2 |
||||||
|
8 |
GU92606208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
9 |
GU95512081 - GOUPILLE More informationQuantity required : 2 |
||||||
|
10 |
GU140119005 - FLANC COMPLET More informationQuantity required : 1 |
||||||
|
10 |
GU14011901 - BRIDE MIN.0,2 MM More informationQuantity required : 1 |
||||||
|
11 |
GU12012200 - GOUPILLE More informationQuantity required : 1 |
||||||
|
12 |
GU98084425 - VIS More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.JPG)
13 |
658837 - RONDELLE More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/2/5/img/128525.jpg)
14 |
GASKET FOR TIMING SYSTEM COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU05001231- More informationQuantity required : 1 |
||||||
|
15 |
GU03001460 - COUVERCLE DE DISTRIBUTION NOIR More informationQuantity required : 1 |
||||||
|
16 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 22 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
17 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 6 |
||||||
|
18 |
GU02517700 - ÉTIQUETTE ADHESIVE More informationQuantity required : 1 |
||||||
|
19 |
GU90402840 - BAGUE D'ETANCHEITE 28X38X7 More informationQuantity required : 1 |
||||||
|
20 |
GU18001150 - BRIDE More informationQuantity required : 1 |
||||||
|
21 |
GU03001600 - COPERCHIO ALTERNATORE LUCIDATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/2/8/img/133028.jpg)
22 |
GU98310631 - VIS More informationQuantity required : 4 |
||||||
|
23 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/7/6/img/129176.jpg)
24 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU14003600- More informationQuantity required : 1 |
||||||
|
25 |
GU98082390 - VIS More informationQuantity required : 4 |
||||||
|
26 |
9764514 - COPPA COMPLETA 940 (ERA 9764511) More informationQuantity required : 1 |
||||||
|
27 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
28 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 18 |
||||||
|
29 |
GU12003702 - BOUCHON VID.HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
30 |
DRAIN CAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU95100709- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/3/img/130473.jpg)
31 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI - 2 VALVES -GU30004910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
32 |
GU90706178 - JOINT TORIQUE 17,86X2,62 More informationQuantity required : 1 |
||||||
|
33 |
GU30999060 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
|
34 |
GU17999550 - KIT MOTEUR SPI More informationQuantity required : 1 |
||||||
|
35 |
GU03991031 - MOTEUR NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/0/img/125500.jpg)
36 |
GASKET FOR PLATE (CLUTCH SIDE) "PIAGGIO GENUINE PART" MOTO-GUZZI ENSEMBLE DE LA GAMME -GU05011830- More informationQuantity required : 1 |
||||||
|
37 |
GU12011401 - BRIDE MIN.0,2 MM More informationQuantity required : 1 |
||||||
|
37 |
GU120114005 - BRIDE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/7/img/129107.jpg)
37 |
FLANGE (ON CLUTCH SIDE) MIN.0,6 MM "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI RANGE -GU12011403- More informationQuantity required : 1 |
||||||
|
37 |
GU12011402 - BRIDE MIN.0,4 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/0/8/img/129108.jpg)
38 |
PIN FOR REAR BEARING "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12011700- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
39 |
O'RING GASKET ON CRANKSHAFT (CLUTCH SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90405367- More informationQuantity required : 1 |
