Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

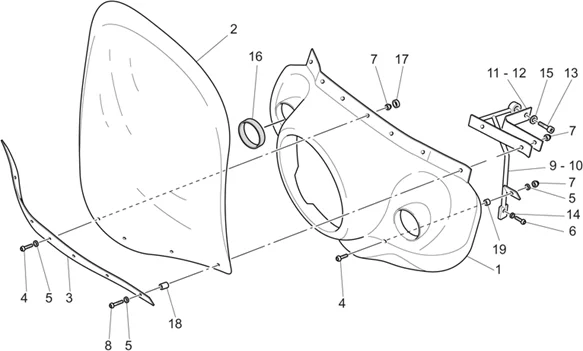

Chassis : 33.44 COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_33.44.png)
1 |
GU03575415 - CUPOLINO GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU03575426 - CARENAGE NOIR More informationQuantity required : 1 |
||||||
|
2 |
WIND SHIELD "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA 2001>2008 -GU03577210 - More informationQuantity required : 1 |
||||||
|
3 |
GU03575515 - BANDE ACIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
4 |
GU98370621 - VIS TBEI M6X20 More informationQuantity required : 5 |
||||||
|
5 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
6 |
GU98370614 - VIS M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
7 |
219277 - BOULON More informationQuantity required : 9 |
||||||
|
8 |
GU98370625 - VIS M6X25 More informationQuantity required : 4 |
||||||
|
9 |
GU03578515 - ETRIER SUPPORT COUPOLE D More informationQuantity required : 1 |
||||||
|
10 |
GU03578615 - ETRIER SUPPORT COUPOLE G More informationQuantity required : 1 |
||||||
|
11 |
GU03578715 - BRIDE DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/1/6/0/img/128160.jpg)
12 |
LEFT CLAMP FOR WINDSHIELD "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA 2002>2008 - GU03578815 - More informationQuantity required : 1 |
||||||
|
13 |
GU98230636 - VIS More informationQuantity required : 2 |
||||||
|
14 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
15 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 2 |
||||||
|
16 |
GU03574115 - GUARNIZIONE More informationQuantity required : 2 |
||||||
|
17 |
GU03573915 - GUARNIZIONE More informationQuantity required : 2 |
||||||
|
18 |
GU91110609 - ENTRETOISE More informationQuantity required : 7 |
||||||
|
19 |
GU91120605 - BAGUE More informationQuantity required : 2 |
