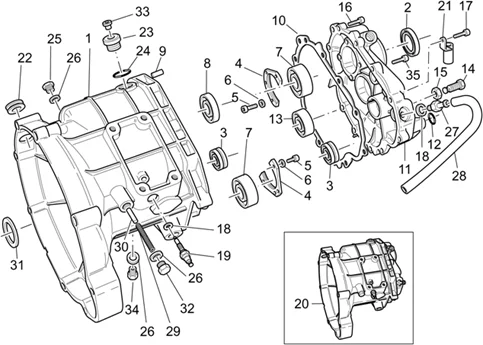

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)
Moteur : 34.11 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_34.11.png)
1 |
GU03200260 - SCATOLA CAMBIO NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/8/4/img/132184.jpg)
2 |
GU90403547 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/4/3/img/132443.jpg)
3 |
GEARBOX BEARING (17X35X15) "PIAGGIO GENUINE PART" MOTO-GUZZI 1000-1100 CALIFORNIA, 850 T3-T5, 850-1000 LE MANS, 1000 DAYTONA, 1000 STRADA -GU92256218- More informationQuantity required : 2 |
||||||
|
4 |
GU14213803 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
5 |
GU98682316 - VIS M6X16 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
6 |
AP8152105 - RONDELLE More informationQuantity required : 6 |
||||||
|
7 |
GU92218424 - ROULEMENT AF/AS More informationQuantity required : 2 |
||||||
|
8 |
GU92234717 - ROULEMENT AS More informationQuantity required : 1 |
||||||
|
9 |
GU95512081 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/8/img/129218.jpg)
10 |
GU14201110 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
GU03200860 - COPERCHIO SCATOLA NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/1/8/img/132218.JPG)
12 |
GU90706140 - JOINT TORIQUE 13,95X2,92 More informationQuantity required : 1 |
||||||
|
13 |
GU92201417 - ROULEMENT AP More informationQuantity required : 1 |
||||||
|
14 |
GU14237800 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU92606512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
16 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
17 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
18 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/8/img/129548.jpg)
19 |
SENSOR - NEUTRAL "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU19207220- More informationQuantity required : 1 |
||||||
|
20 |
GU03991560 - BOITE DE VITESSES COMPL.NOIR More informationQuantity required : 1 |
||||||
|
21 |
GU30424660 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
22 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
|
23 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
24 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
25 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
26 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO -GU01528930- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/9/img/129219.jpg)
27 |
GEARBOX OIL BREATHER VALVE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNI, 850 T3, 1000 DAYTONA, LE MANS, QUOTA, SP, STRADA, V10 -GU14204955- More informationQuantity required : 1 |
||||||
|
28 |
GU00823956080 - T SAE J30 R7 8X14 More informationQuantity required : 1 |
||||||
|
29 |
GU94321067 - RETOUR LEVIER DEMARRAGE More informationQuantity required : 1 |
||||||
|
30 |
GU28234700 - ENCLIQUETAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/7/img/68807.jpg)
31 |
GASKET RING-REAR WHEEL SHAFT "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, VESPA-S, X8 STREET/GILERA 125 RUNNER, DNA/APRILIA 125 MOJITO -82899R- More informationQuantity required : 1 |
||||||
|
32 |
GU95980610 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
33 |
GU93180245 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
34 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766- More informationQuantity required : 1 |
||||||
|
35 |
GU98882325 - VIS More informationQuantity required : 1 |
