Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

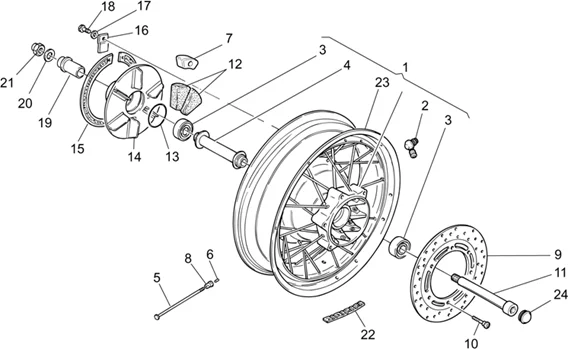

Chassis : 33.29 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_33.29.png)
1 |
GU03630670 - "ROUE ARRIERE NUE 4,00X17""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
2 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" GAMME MOTO-GUZZI -GU03617710- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
3 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
4 |
GU03634010 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/8/img/128218.JPG)
5 |
GU03631411 - RAYON More informationQuantity required : 40 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/7/8/img/133078.JPG)
6 |
GU98460404 - GOUJON More informationQuantity required : 40 |
||||||
|
7 |
GU03636110 - ARRIET JOINT FLEXIBLE More informationQuantity required : 6 |
||||||
|
8 |
GU03611711 - NIPPLES More informationQuantity required : 40 |
||||||
|
9 |
GU03635700 - DISQUE FREIN AR OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
10 |
SCREW - REAR DISC BRAKE FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30611460- More informationQuantity required : 6 |
||||||
|
11 |
GU03633350 - AXE DE ROUE AR More informationQuantity required : 1 |
||||||
|
12 |
GU03336810 - ELEMENTO PARASTRAPPI More informationQuantity required : 12 |
||||||
|
13 |
GU90706490 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
14 |
GU30335260 - DISQUE PIECE EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
15 |
GU14335303 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
16 |
GU17335950 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
17 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 1 |
||||||
|
18 |
GU98084312 - VIS More informationQuantity required : 1 |
||||||
|
19 |
GU03634110 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/5/img/132685.JPG)
20 |
GU95008219 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
GU92630719 - ECROU More informationQuantity required : 1 |
||||||
|
22 |
GU14616150 - CONTREPOIDS More informationQuantity required : 2 |
||||||
|
23 |
GU03630710 - "JANTE ARRIERE 4,00X17""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/2/img/132572.jpg)
24 |
GU93180111 - BOUCHON 15 MM More informationQuantity required : 1 |
