Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring PI 1100 2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

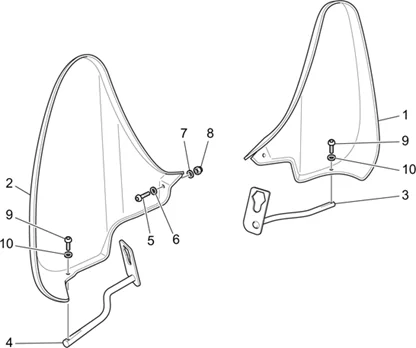

Chassis : 33.43 PROTECTION DE PIED
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/923/California_EV-EV_Touring_PI_1100_2002_33.43.png)
1 |
GU03586615 - PROTECTION DE PIED DROITE BRUT More informationQuantity required : 1 |
||||||
|
1 |
GU03586626 - PROTECTION DE PIED DROITE NOIR More informationQuantity required : 1 |
||||||
|
2 |
GU03586715 - PROTECTION DE PIED GAUCHE BRUT More informationQuantity required : 1 |
||||||
|
3 |
GU03443915 - SUPPORTO DX More informationQuantity required : 1 |
||||||
|
4 |
GU03444015 - SUPPORTO SX More informationQuantity required : 1 |
||||||
|
5 |
GU98370616 - VIS M6X16 More informationQuantity required : 2 |
||||||
|
6 |
GU66478610 - RONDELLE NYLON 6X17X1 More informationQuantity required : 2 |
||||||
|
7 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
8 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
9 |
GU98350215 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/2/img/130422.jpg)
10 |
GU29577860 - RONDELLE More informationQuantity required : 2 |
