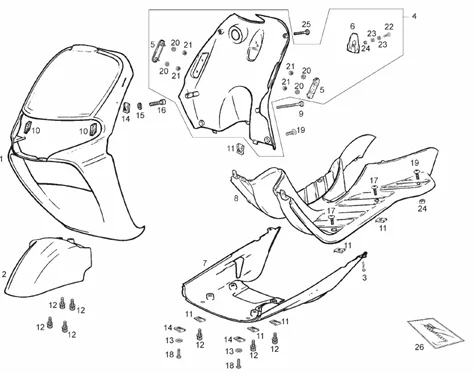

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)

	P2R reference	151209
	Maker reference	20G01502351

20G01502351 - TABLIER AV.

	P2R reference	193783
	Maker reference	86409200WG55

86409200WG55 - R-GUARDAB.DLNT.MET.CROM.ATL.07

	P2R reference	63939
	Maker reference	00G007130225

00G007130225 - GARDE BOUE AV.

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	187422
	Maker reference	00G06803434

00G06803434 - CONTRE-TABLIER COMPLET

	P2R reference	71569
	Maker reference	AP8124719

AP8124719 - CATADIOPTRE, AMBRE

	P2R reference	187423
	Maker reference	00G06301103

00G06301103 - CROCHET

	P2R reference	193784
	Maker reference	00G05902863

00G05902863 - PROTECTION INF.CHASSIS

	P2R reference	187424
	Maker reference	00G01504093

00G01504093 - REPOSE-PIED

	P2R reference	63684
	Maker reference	000110550015

00011055001 - VIS TARAUD 5X50 NOIR CL89H

	P2R reference	187298
	Maker reference	00G05700101

00G05700101 - BUTEE PHARE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	63994
	Maker reference	00G01504701

00G01504701 - BOULON SER.

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63683
	Maker reference	000110518015

00011051801 - VIS TARAUD

	P2R reference	193785
	Maker reference	86397800WG5

86397800WG5 - R-CTO.KIT CALCAS ATLANTIS MET.CROM.4T 0

	P2R reference	193786
	Maker reference	86397800WN0

86397800WN0 - R-CTO.KIT CALCAS ATLANTIS NGR.OMB.4T 07
