Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

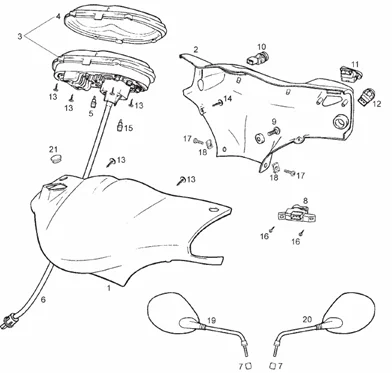

Châssis - parties plastiques - carrosseries : 11 INSTRUMENTS
Instruments
Search
00G010185185 - CACHE DIRECTION AV.

1
P2R reference P2R reference 187386
Maker reference Maker reference 00G010185185

00G010185185 - CACHE DIRECTION AV.

More information

Quantity required : 1

86409300WG55 - R-CARCASA DLNT.MET.CROM.ATL.07

1
P2R reference P2R reference 193791
Maker reference Maker reference 86409300WG55

86409300WG55 - R-CARCASA DLNT.MET.CROM.ATL.07

More information

Quantity required : 1

00G01011523 - CACHE DIRECTION AR.

2
P2R reference P2R reference 187440
Maker reference Maker reference 00G01011523

00G01011523 - CACHE DIRECTION AR.

More information

Quantity required : 1

00G01630521 - ENSEMBLE COMPTEUR KM/H

3
P2R reference P2R reference 187393
Maker reference Maker reference 00G01630521

00G01630521 - ENSEMBLE COMPTEUR KM/H

More information

Quantity required : 1

00G01605071 - GLACE COMPTEUR KILOMETRIQUE

4
P2R reference P2R reference 64006
Maker reference Maker reference 00G01605071

00G01605071 - GLACE COMPTEUR KILOMETRIQUE

More information

Quantity required : 1

00G01602581 - R-PORTE-LAMPES

5
P2R reference P2R reference 64003
Maker reference Maker reference 00G01602581

00G01602581 - R-PORTE-LAMPES

More information

Quantity required : 1

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 DIESIS -00G01605021-

6
P2R reference P2R reference 64005
Maker reference Maker reference 00G01605021

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 DIESIS -00G01605021-

More information

Quantity required : 1

00D04900581 - DOUILLE SUPPLEMENTAIRE GOUJON

7
P2R reference P2R reference 63892
Maker reference Maker reference 00D04900581

00D04900581 - DOUILLE SUPPLEMENTAIRE GOUJON

More information

Quantity required : 1

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, 125 VESPA GTS -294723-

8
P2R reference P2R reference 77804
Maker reference Maker reference 294723

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, 125 VESPA GTS -294723-

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

9
P2R reference P2R reference 63992
Maker reference Maker reference 00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

More information

Quantity required : 1

00G02101631 - ENSEMBLE COMMUTATEUR DEMARRAGE

10
P2R reference P2R reference 187394
Maker reference Maker reference 00G02101631

00G02101631 - ENSEMBLE COMMUTATEUR DEMARRAGE

More information

Quantity required : 1

00G02303171 - ENSEMBLE COMMUTATEUR PHARES

11
P2R reference P2R reference 64032
Maker reference Maker reference 00G02303171

00G02303171 - ENSEMBLE COMMUTATEUR PHARES

More information

Quantity required : 1

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

12
P2R reference P2R reference 67177
Maker reference Maker reference 58058R

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

More information

Quantity required : 1

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

13
P2R reference P2R reference 63676
Maker reference Maker reference 000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

More information

Quantity required : 1

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

14
P2R reference P2R reference 63676
Maker reference Maker reference 000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

More information

Quantity required : 1

00G01601581 - R-PORTE-LAMPES

15
P2R reference P2R reference 64002
Maker reference Maker reference 00G01601581

00G01601581 - R-PORTE-LAMPES

More information

Quantity required : 1

16
P2R reference P2R reference
Maker reference Maker reference 000110310015

00008051200 - VIS 5X12

17
P2R reference P2R reference 63661
Maker reference Maker reference 000080512005

00008051200 - VIS 5X12

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

18
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00G02209671 - RETROVISEUR D.

19
P2R reference P2R reference 187395
Maker reference Maker reference 00G02209671

00G02209671 - RETROVISEUR D.

More information

Quantity required : 1

MIRROR- LEFT "PIAGGIO GENUINE PART" 50 DIESIS 1998>2005 -00G04610921

20
P2R reference P2R reference 64122
Maker reference Maker reference 00G04610921

MIRROR- LEFT "PIAGGIO GENUINE PART" 50 DIESIS 1998>2005 -00G04610921

More information

Quantity required : 1

00G06303451 - BOUCHON

21
P2R reference P2R reference 193792
Maker reference Maker reference 00G06303451

00G06303451 - BOUCHON

More information

Quantity required : 1
