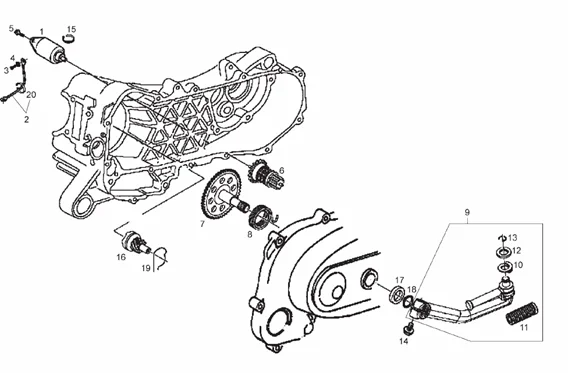

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)

	P2R reference	70939
	Maker reference	96921R

ELECTRIC STARTER "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2005>, LIBERTY 4 STROKE2005>, NRG PURE-JET, ZIP 4 STROKE 2000>/GILERA 50 RUNNER PURE-JET/VESPA LX 4 STROKE2005>, PRIMAVERA 4 STROKE2013>, VESPA S 4 STROKE 2008> -96921R

	P2R reference	70968
	Maker reference	969347

969347 - GROUPE CABLES

	P2R reference	65449
	Maker reference	0186445

018644 - VIS

	P2R reference	65414
	Maker reference	0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

	P2R reference	65642
	Maker reference	0310915

031091 - VIS

	P2R reference	66215
	Maker reference	289202

STARTER DRIVE PINION "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2005>, LIBERTY 4 STROKE 2005>, VESPA LX 4 STROKE 2005>, PRIMAVERA 4 STROKE 2013>, VESPA SPRINT 4 STROKE 2014>, NRG PURE-JET 2005>, ZIP 4 STROKE 2000>/APRILIA 50 RS 2006> -289202-

	P2R reference	68967
	Maker reference	831458

KICKSTART SHAFT "PIAGGIO GENUINE PART" FLY 2 STROKE ET 4 STROKE, LYBERTY 2 STROKE ET 4 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE ET 4 STROKE/GILERA DNA, STALKER, RUNNER/APRILIA SR MOTARD, SPORT-CITY -831458-

	P2R reference	66223
	Maker reference	289495

RETURN SPRING FOR KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289495

	P2R reference	66168
	Maker reference	286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214

	P2R reference	66168
	Maker reference	286214

KICK STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286214

	P2R reference	66169
	Maker reference	286217

KICK STARTER RUBBER "PIAGGIO GENUINE PART" COMMON FOR SCOOTERS 50CC -286217-

	P2R reference	66170
	Maker reference	286219

286219 - RONDELLE

	P2R reference	66185
	Maker reference	288041

288041 - CIRCLIPS

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	66633
	Maker reference	483537

KICK STARTER PINION "PIAGGIO GENUINE PART" 50 2 STROKE + 4 STROKE FLU, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/VESPA 50 LX/APRILIA 50 SR -483537

	P2R reference	66443
	Maker reference	433987

KICK STARTER SHAFT WASHER (16,3X23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987-

	P2R reference	63814
	Maker reference	0064165

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416-

	P2R reference	68901
	Maker reference	830212

KICK STARTER NUT-PINION SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -830212

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298
