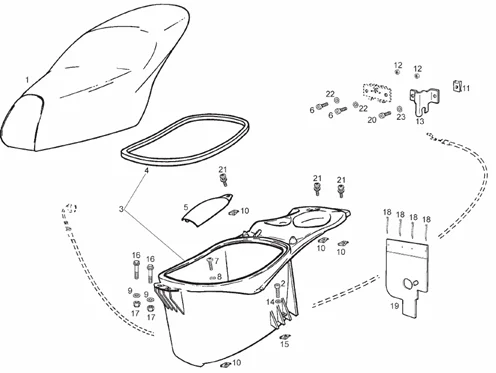

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 4 SELLE - COMPART.P-CASQUE
Selle - Compart.p-casque
Search
863977 - CTO.SILLIN MARRON ATLANTIS 2T 07

1
P2R reference P2R reference 193781
Maker reference Maker reference 863977

863977 - CTO.SILLIN MARRON ATLANTIS 2T 07

More information

Quantity required : 1

00G00623017 - ENSEMBLE SELLE

1
P2R reference P2R reference 187437
Maker reference Maker reference 00G00623017

00G00623017 - ENSEMBLE SELLE

More information

Quantity required : 1

847227 - BOULON

2
P2R reference P2R reference 69497
Maker reference Maker reference 847227

847227 - BOULON

More information

Quantity required : 1

00G06308721 - ENSEMB.PORTE-CASQUE AVEC PROF.

3
P2R reference P2R reference 187314
Maker reference Maker reference 00G06308721

00G06308721 - ENSEMB.PORTE-CASQUE AVEC PROF.

More information

Quantity required : 1

00G06301551 - PROFIL PORTE-CASQUE

4
P2R reference P2R reference 64148
Maker reference Maker reference 00G06301551

00G06301551 - PROFIL PORTE-CASQUE

More information

Quantity required : 1

00G01802221 - COUVERCLE ACCES CARBURATEUR

5
P2R reference P2R reference 187315
Maker reference Maker reference 00G01802221

00G01802221 - COUVERCLE ACCES CARBURATEUR

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

6
P2R reference P2R reference 63614
Maker reference Maker reference 000020520515

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

More information

Quantity required : 1

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

7
P2R reference P2R reference 63704
Maker reference Maker reference 000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

More information

Quantity required : 1

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

8
P2R reference P2R reference 187316
Maker reference Maker reference 00H00500212

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

9
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

11
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

12
P2R reference P2R reference
Maker reference Maker reference 000000230515

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

13
P2R reference P2R reference 187317
Maker reference Maker reference 00G06801051

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

More information

Quantity required : 1

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

14
P2R reference P2R reference 69480
Maker reference Maker reference 847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

15
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00G03600991 - BOULON SERRAGE TURBINE H.(6X16

16
P2R reference P2R reference 64088
Maker reference Maker reference 00G03600991

00G03600991 - BOULON SERRAGE TURBINE H.(6X16

More information

Quantity required : 1

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

17
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

More information

Quantity required : 1

00F00900531 - COLLIER

18
P2R reference P2R reference 63899
Maker reference Maker reference 00F00900531

00F00900531 - COLLIER

More information

Quantity required : 1

00G02200911 - PROTECTEUR CARBURATEUR

19
P2R reference P2R reference 187319
Maker reference Maker reference 00G02200911

00G02200911 - PROTECTEUR CARBURATEUR

More information

Quantity required : 1

847227 - BOULON

20
P2R reference P2R reference 69497
Maker reference Maker reference 847227

847227 - BOULON

More information

Quantity required : 1

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

21
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

22
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

More information

Quantity required : 1

00H03800722 - RONDELLE

23
P2R reference P2R reference 64840
Maker reference Maker reference 00H03800722

00H03800722 - RONDELLE

More information

Quantity required : 1
