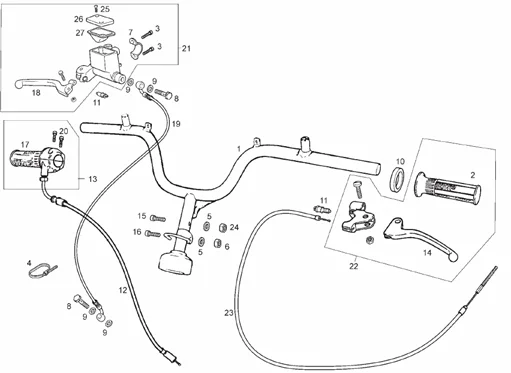

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)

	P2R reference	166319
	Maker reference	00G00907011

00G00907011 - SOUS-ENSEMBLE GUIDON

	P2R reference	187327
	Maker reference	00F00930071

00F00930071 - IMPUGNATURA NEE GAZ

	P2R reference	63646
	Maker reference	000040616005

00004061600 - VIS

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	63787
	Maker reference	004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

	P2R reference	63591
	Maker reference	000000230805

00000023080 - ECROU INDESSERABLE 8M125

	P2R reference	63886
	Maker reference	00D02100901

HALF CLAMP- FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 20006>2010 -00D02100901

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	187328
	Maker reference	00G05800011

00G05800011 - DOUILLE

	P2R reference	63870
	Maker reference	00D01000701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701

	P2R reference	187329
	Maker reference	00G00912171

00G00912171 - CABLE

	P2R reference	187330
	Maker reference	00G00906081

00G00906081 - ENSEMBLE POIGNEE GAZ

	P2R reference	63948
	Maker reference	00G00900291

00G00900291 - LEVIER DE FREIN ARRIERE

	P2R reference	63620
	Maker reference	000020840115

00002084011 - VIS

	P2R reference	63652
	Maker reference	000041845005

00004184500 - VIS

	P2R reference	187331
	Maker reference	00F00930091

00F00930091 - CAOUT. DE PIGNEE GAZ

	P2R reference	63900
	Maker reference	00F00902291

FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2005 -00F00902291-

	P2R reference	187442
	Maker reference	864122

864122 - R-TUBO LIQU.FRENO.DLNTRO.ATL 4T

	P2R reference	166329
	Maker reference	00F00901151

00F00901151 - VIS FIXATION COUVRE POIGNEE GA

	P2R reference	187443
	Maker reference	864119

864119 - R-CTO.BOMBA FRENO DLNTRO.ATL 4T

	P2R reference	187332
	Maker reference	00G02106611

00G02106611 - ENS. PORTE-MANETTE GAUCHE

	P2R reference	187333
	Maker reference	00G00906431

00G00906431 - SOUS-ENS.CABLE-GAINE FREIN AR.

	P2R reference	63767
	Maker reference	002620800225

00262080022 - ECROU

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861-
