Vehicle Exploded View - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

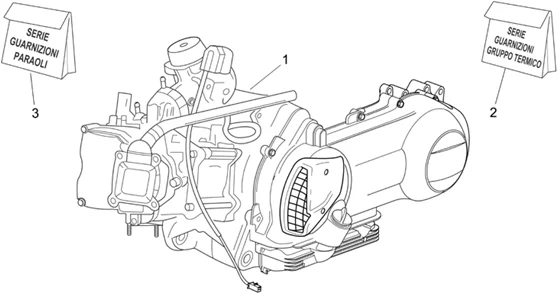

Moteur : 29.30 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_29.30.PNG)
1 |
CM1432345 - MOTEUR 250 4T/4V E3 ATLANTIC APRILIA More informationQuantity required : 1 |
||||||
|
1 |
CM1265305 - MOTEUR 125 4T/4V E3 ARIA More informationQuantity required : 1 |
||||||
|
2 |
497551 - JEU BAGUES D'ET. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/1/img/66941.jpg)
2 |
GASKET SET FOR TOP ENGINE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -497588- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/4/img/66944.jpg)
3 |
COMPLETE ENGINE GASKET SET "PIAGGIO GENUINE PART" 250-300 MP3, X8, X9 EVO, X-EVO, VESPA GTS/GILERA 250-300 NEXUS -497592- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/5/img/66945.JPG)
3 |
GASKET SET FOR TOP ENGINE PIAGGIO - 125 LEADER ENGINE -497593- More informationQuantity required : 1 |
