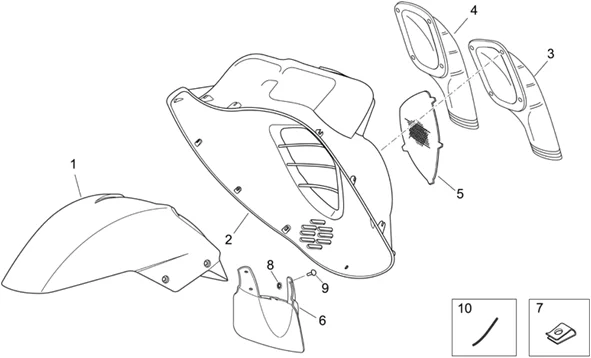

Vehicle Exploded View - APRILIA ATLANTIC 125 2006-2008 APRILIA

Chassis : 28.09 CARROSSERIE AV. III
Carrosserie av. iii
Search
AP8156195 - PARAFANGO ANT.V.BIANCO VENICE

1
P2R reference P2R reference 51252
Maker reference Maker reference AP8156195

AP8156195 - PARAFANGO ANT.V.BIANCO VENICE

More information

Quantity required : 1
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC 2005>2008 GREY SHOT -AP8156272-

1
P2R reference P2R reference 51301
Maker reference Maker reference AP8156272

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC 2005>2008 GREY SHOT -AP8156272-

More information

Quantity required : 1
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC 2005>2008 GREY EXCALIBUR -AP8156276-

1
P2R reference P2R reference 51304
Maker reference Maker reference AP8156276

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC 2005>2008 GREY EXCALIBUR -AP8156276-

More information

Quantity required : 1
AP8156277 - PARAFANGO ANT.V.BLU COUTURE

1
P2R reference P2R reference 51305
Maker reference Maker reference AP8156277

AP8156277 - PARAFANGO ANT.V.BLU COUTURE

More information

Quantity required : 1
AP8156278 - GARDE-BOUE AV, NOIR

1
P2R reference P2R reference 51306
Maker reference Maker reference AP8156278

AP8156278 - GARDE-BOUE AV, NOIR

More information

Quantity required : 1
AP8156349 - GARDE-BOUE AV

1
P2R reference P2R reference 51353
Maker reference Maker reference AP8156349

AP8156349 - GARDE-BOUE AV

More information

Quantity required : 1
AP8226896 - GARDE-BOUE AV BLEU

1
P2R reference P2R reference 57833
Maker reference Maker reference AP8226896

AP8226896 - GARDE-BOUE AV BLEU

More information

Quantity required : 1
AP8126960 - COMPART.ROUE;

2
P2R reference P2R reference 47937
Maker reference Maker reference AP8126960

AP8126960 - COMPART.ROUE;

More information

Quantity required : 1
AP8134814 - CONVOYEUR G;

3
P2R reference P2R reference 49035
Maker reference Maker reference AP8134814

AP8134814 - CONVOYEUR G;

More information

Quantity required : 1
AP8134813 - CONVOYEUR D;

4
P2R reference P2R reference 49034
Maker reference Maker reference AP8134813

AP8134813 - CONVOYEUR D;

More information

Quantity required : 1
AP8168708 - GRILLE CONVOYEUR;

5
P2R reference P2R reference 53335
Maker reference Maker reference AP8168708

AP8168708 - GRILLE CONVOYEUR;

More information

Quantity required : 2
AP8126963 - BAVOLET AV;

6
P2R reference P2R reference 47939
Maker reference Maker reference AP8126963

AP8126963 - BAVOLET AV;

More information

Quantity required : 1
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

7
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 1
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

8
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 5
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO -AP8144109-

9
P2R reference P2R reference 71750
Maker reference Maker reference AP8144109

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO -AP8144109-

More information

Quantity required : 5
AP8144281 - JOINT

10
P2R reference P2R reference 49681
Maker reference Maker reference AP8144281

AP8144281 - JOINT

More information

Quantity required : 2
