Vehicle Exploded View - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

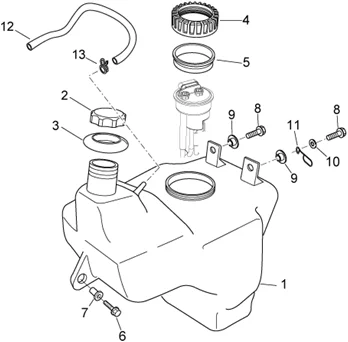

Chassis : 28.21 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_28.21.PNG)
1 |
AP8168883 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
2 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/8/9/img/45189.jpg)
3 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC, 125 LEONARDO -AP8102605- More informationQuantity required : 1 |
||||||
|
4 |
AP8158359 - BAGUE; More informationQuantity required : 1 |
||||||
|
5 |
AP8144422 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
7 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
8 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
9 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
10 |
AP8150013 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
AP8202159 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
12 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
13 |
AP8101595 - COLLIER More informationQuantity required : 1 |
