Vehicle Exploded View - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

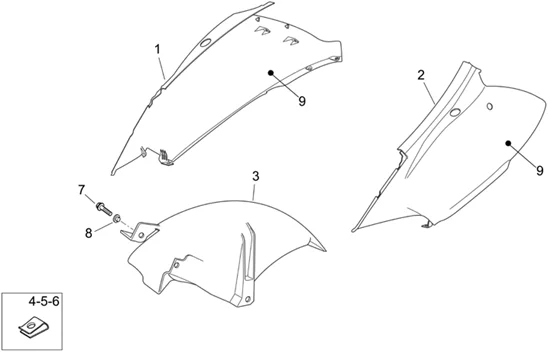

Chassis : 28.13 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_28.13.PNG)
1 |
AP8179054 - CODONE DX V.BIANCO VENICE More informationQuantity required : 1 |
||||||
|
1 |
AP8268997 - QUEUE D,BLEU More informationQuantity required : 1 |
||||||
|
1 |
AP8184578 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8179785 - QUEUE D, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8179774 - QUEUE D, BLEU More informationQuantity required : 1 |
||||||
|
1 |
AP8179763 - QUEUE D, GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/6/9/4/img/54694.jpg)
1 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" APRILIA 125-250 2006>2008 ATLANTIC GREY SHOT -AP8179749- More informationQuantity required : 1 |
||||||
|
2 |
AP8268998 - QUEUE G, BLEU More informationQuantity required : 1 |
||||||
|
2 |
AP8184579 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
AP8179786 - QUEUE G, NOIRE More informationQuantity required : 1 |
||||||
|
2 |
AP8179775 - QUEUE G, BLEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/7/0/7/img/54707.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC GREY EXCALIBUR -AP8179764- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/6/9/5/img/54695.jpg)
2 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC GREY -AP8179750- More informationQuantity required : 1 |
||||||
|
2 |
AP8179055 - CODONE SX V.BIANCO VENICE More informationQuantity required : 1 |
||||||
|
3 |
AP8156023 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
6 |
AP8201763 - CLIP POUR VIS TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
7 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
8 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
|
9 |
DECAL "ATLANTIC" ORIGINE PIAGGO APRILIA 125-250-500 ATLANTIC -AP8167671- More informationQuantity required : 2 |
