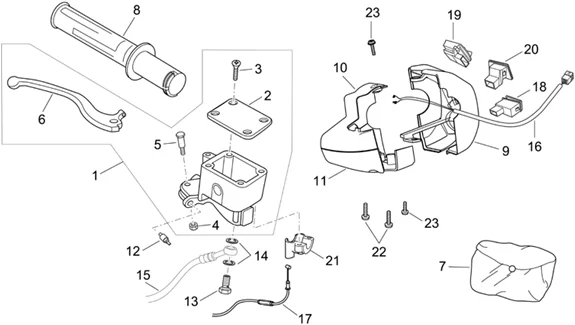

Chassis : 28.18 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_28.18.PNG)
1 |
AP8133582 - MA?T. CYL. FREIN AV; More informationQuantity required : 1 |
||||||
|
1 |
RIGHT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 SCARABEO, ATLANTIC -AP8133734- More informationQuantity required : 1 |
||||||
|
2 |
AP8133808 - COPERCHIO POMPA More informationQuantity required : 1 |
||||||
|
3 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
3 |
AP8133807 - VITE COPERCHIO POMPA More informationQuantity required : 4 |
||||||
|
4 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
4 |
AP8213585 - DADO More informationQuantity required : 1 |
||||||
|
5 |
AP8213584 - VITE FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
5 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
6 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/0/3/img/48803.jpg)
6 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 ATLANTIC, SCARABEO -AP8133811- More informationQuantity required : 1 |
||||||
|
7 |
AP8113864 - KIT REVISION POMPE; More informationQuantity required : 1 |
||||||
|
7 |
AP8133812 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/8/3/img/46383.jpg)
8 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 125-250-300-400-500 ATLANTIC -AP8118656- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/8/9/0/img/51890.jpg)
9 |
LOWER SHELL FOR RIGHT SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 ATLANTIC 2003>2012 -AP8158897- More informationQuantity required : 1 |
||||||
|
10 |
AP8158932 - COQUE SUP.D; More informationQuantity required : 1 |
||||||
|
11 |
UPPER SHELL FOR RIGHT SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 ATLANTIC 2003>2012 -AP8158930- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
12 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
13 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
858232 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
16 |
AP8127393 - CABLAGE CLIGNOTANTS D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/6/2/5/img/38625.jpg)
17 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC -CM060978- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
18 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124208- More informationQuantity required : 1 |
||||||
|
19 |
AP8224447 - DISP. ENGINE STP-START More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/0/4/img/45404.jpg)
20 |
AP8104546 - BOUCHON More informationQuantity required : 1 |
||||||
|
21 |
AP8118582 - SIEGE COMM. GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
22 |
AP8152270 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
23 |
AP8152268 - VIS More informationQuantity required : 2 |
