Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

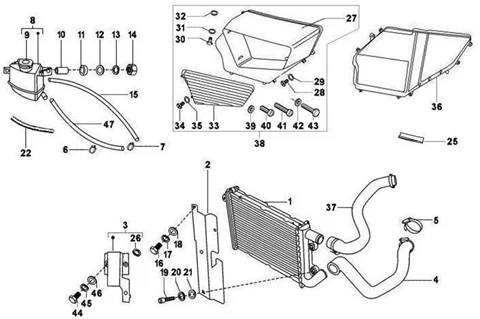

Parties plastiques-carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_02.55.PNG)
1 |
605474R - RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
616533 - SUPPORT More informationQuantity required : 1 |
||||||
|
3 |
616534 - SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
604553 - COLLIER More informationQuantity required : 4 |
||||||
|
8 |
616825 - RESERVOIR More informationQuantity required : 1 |
||||||
|
9 |
616813 - BOUCHON More informationQuantity required : 1 |
||||||
|
10 |
632809 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
11 |
351782 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
12 |
604973 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
14 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
|
15 |
616824 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
16 |
031088 - VIS S03108800 More informationQuantity required : 5 |
||||||
|
17 |
016406 - RONDELLE S01640600 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
18 |
003056 - RONDELLE More informationQuantity required : 5 |
||||||
|
19 |
030052 - VIS S03005200 More informationQuantity required : 3 |
||||||
|
20 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
21 |
179575 - RONDELLE More informationQuantity required : 3 |
||||||
|
22 |
587763 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
25 |
613225 - JOINT More informationQuantity required : 2 |
||||||
|
27 |
616558 - ASPIRATORE ESTERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
29 |
013963 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
30 |
709674 - VIS More informationQuantity required : 2 |
||||||
|
31 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
|
32 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
33 |
645132 - CALANDRE RADIATEUR More informationQuantity required : 1 |
||||||
|
34 |
632608 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
35 |
003054 - RONDELLE S00305400 More informationQuantity required : 3 |
||||||
|
36 |
616956 - CANALISATION More informationQuantity required : 1 |
||||||
|
37 |
616959 - TUYAU EAU More informationQuantity required : 1 |
||||||
|
38 |
643745 - CANALISATION More informationQuantity required : 1 |
||||||
|
39 |
003056 - RONDELLE More informationQuantity required : 3 |
||||||
|
40 |
709674 - VIS More informationQuantity required : 1 |
||||||
|
41 |
122637 - VIS More informationQuantity required : 1 |
||||||
|
42 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
43 |
644825 - VIS More informationQuantity required : 1 |
||||||
|
44 |
031088 - VIS S03108800 More informationQuantity required : 5 |
||||||
|
45 |
016406 - RONDELLE S01640600 More informationQuantity required : 5 |
||||||
|
46 |
003056 - RONDELLE More informationQuantity required : 5 |
||||||
|
47 |
645259 - TUYAU More informationQuantity required : 1 |
