Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

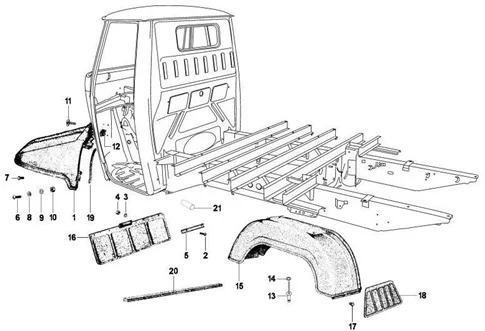

Parties plastiques-carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_02.33.PNG)
1 |
616603 - GARDE BOUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
2 |
031088 - VIS S03108800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
4 |
020106 - ECROU S02010600 More informationQuantity required : 4 |
||||||
|
5 |
PRODUIT ÉCLATÉ PIAGGIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
6 |
031092 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
7 |
031089 - BOULON S03108900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
8 |
078307 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
9 |
013880 - RONDELLE More informationQuantity required : 12 |
||||||
|
10 |
020106 - ECROU S02010600 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/0/img/65390.jpg)
11 |
015730 - VIS S01573000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
12 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 3 |
||||||
|
13 |
604603 - RIVET More informationQuantity required : 4 |
||||||
|
14 |
PRODUIT ÉCLATÉ PIAGGIO More informationQuantity required : 4 |
||||||
|
15 |
1821495 - GARDE BOUE More informationQuantity required : 2 |
||||||
|
16 |
116103 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/1/img/65741.jpg)
17 |
SADDLE HOLDING PIN "PIAGGIO GENUINE PART" 50 CIAO, APE -142425- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/0/img/113350.jpg)
18 |
142424 - BAVETTE More informationQuantity required : 1 |
||||||
|
19 |
568703 - JOINT More informationQuantity required : 2 |
||||||
|
20 |
568702 - JOINT More informationQuantity required : 2 |
||||||
|
21 |
568131 - BOUCHON More informationQuantity required : 2 |
