Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007 PIAGGIO VU

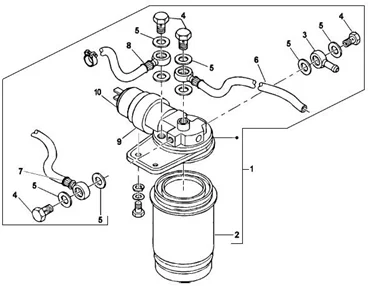

Parties plastiques-carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
Instalation de l'alimentation
Search
613199 - DISPOSITIVO

1
P2R reference P2R reference 123436
Maker reference Maker reference 613199

613199 - DISPOSITIVO

More information

Quantity required : 1
DIESEL GAS-OIL FILTER "PIAGGIO GENUINE PART" APE, PORTER 1998>2005 -493290-

2
P2R reference P2R reference 120381
Maker reference Maker reference 493290

DIESEL GAS-OIL FILTER "PIAGGIO GENUINE PART" APE, PORTER 1998>2005 -493290-

More information

Quantity required : 1
568185 - RACCORD

3
P2R reference P2R reference 113128
Maker reference Maker reference 568185

568185 - RACCORD

More information

Quantity required : 1
493054 - BOULON M 10

4
P2R reference P2R reference 114120
Maker reference Maker reference 493054

493054 - BOULON M 10

More information

Quantity required : 6
GASKET "PIAGGIO GENUINE PART" -493123-

5
P2R reference P2R reference 109958
Maker reference Maker reference 493123

GASKET "PIAGGIO GENUINE PART" -493123-

More information

Quantity required : 12
613198 - TUYAU CARB.

6
P2R reference P2R reference 119724
Maker reference Maker reference 613198

613198 - TUYAU CARB.

More information

Quantity required : 1
614939 - TUYAU

7
P2R reference P2R reference 116688
Maker reference Maker reference 614939

614939 - TUYAU

More information

Quantity required : 1
614938 - TUYAU

8
P2R reference P2R reference 118468
Maker reference Maker reference 614938

614938 - TUYAU

More information

Quantity required : 1
568721 - RONDELLE

9
P2R reference P2R reference 109869
Maker reference Maker reference 568721

568721 - RONDELLE

More information

Quantity required : 1
493542 - ELETTROMAGN**

10
P2R reference P2R reference 123182
Maker reference Maker reference 493542

493542 - ELETTROMAGN**

More information

Quantity required : 1
