Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

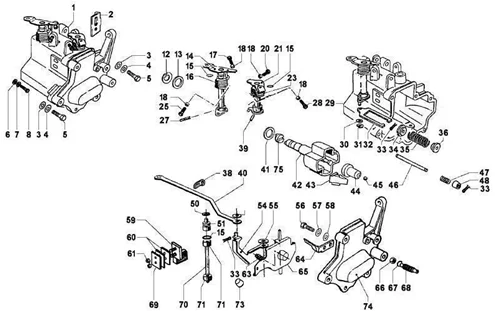

Moteur : 01.41 REGULATEUR DE DEBIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_01.41.PNG)
1 |
493829 - CARTER More informationQuantity required : 1 |
|||||||||
|
2 |
493830 - PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
3 |
003056 - RONDELLE More informationQuantity required : 6 |
|||||||||
|
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
5 |
031092 - VIS More informationQuantity required : 6 |
|||||||||
|
6 |
003056 - RONDELLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
8 |
323990 - TENDEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/5/img/63815.JPG)
12 |
006417 - CIRCLIPS S00641700 More informationQuantity required : 2 |
|||||||||
|
14 |
2235364 - GR.LEVE COM.MA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
15 |
O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035- More informationQuantity required : 3 |
|||||||||
|
16 |
493831 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
18 |
020105 - ECROU S02010500 More informationQuantity required : 4 |
|||||||||
|
20 |
L1755091 - VIS More informationQuantity required : 1 |
|||||||||
|
23 |
830652 - RESSORT More informationQuantity required : 1 |
|||||||||
|
27 |
008818 - PIVOT More informationQuantity required : 1 |
|||||||||
|
29 |
493832 - CARTER More informationQuantity required : 1 |
|||||||||
|
30 |
003055 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/6/img/63796.jpg)
31 |
005964 - CIRCLIPS S00596400 More informationQuantity required : 1 |
|||||||||
|
32 |
236207 - RESSORT More informationQuantity required : 1 |
|||||||||
|
33 |
246104 - SPILLO DI FERM More informationQuantity required : 3 |
|||||||||
|
34 |
L6400093 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
35 |
L5800175 - RESSORT More informationQuantity required : 1 |
|||||||||
|
36 |
223529 - PIATTELLO More informationQuantity required : 1 |
|||||||||
|
38 |
L1557143 - BLOCK GUIDE More informationQuantity required : 1 |
|||||||||
|
39 |
008818 - PIVOT More informationQuantity required : 1 |
|||||||||
|
40 |
826581 - ASTA COLLEGAME More informationQuantity required : 1 |
|||||||||
|
42 |
493834 - CONTENITORE MA More informationQuantity required : 1 |
|||||||||
|
43 |
168146 - MASSA PER REGO More informationQuantity required : 1 |
|||||||||
|
44 |
236318 - CURSORE More informationQuantity required : 1 |
|||||||||
|
44 |
L6231249 - CURSORE More informationQuantity required : 1 |
|||||||||
|
45 |
236322 - SFERA More informationQuantity required : 1 |
|||||||||
|
46 |
245797 - ALBERINO PER M More informationQuantity required : 1 |
|||||||||
|
47 |
245599 - RESSORT ATD-T1 More informationQuantity required : 1 |
|||||||||
|
48 |
220708 - SCODELLINO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/8/img/63818.JPG)
50 |
006612 - CIRCLIPS S00661200 More informationQuantity required : 1 |
|||||||||
|
51 |
2352844 - BUSSOLA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
53 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
|||||||||
|
54 |
2470034 - JOINT CYLINDRE PK50S More informationQuantity required : 1 |
|||||||||
|
56 |
031057 - BOULON S03105700 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
57 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
|||||||||
|
58 |
003055 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
59 |
236276 - CONTEN.CALAMIT More informationQuantity required : 1 |
|||||||||
|
60 |
L4775578 - JOINT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
61 |
012112 - ECROU S01211200 More informationQuantity required : 2 |
|||||||||
|
63 |
168160 - RESSORT More informationQuantity required : 1 |
|||||||||
|
64 |
248342 - TEGOLINO More informationQuantity required : 1 |
|||||||||
|
65 |
L5201257 - LEVA DI REGOL. More informationQuantity required : 1 |
|||||||||
|
66 |
B011531 - ECROU More informationQuantity required : 1 |
|||||||||
|
66 |
B011531 - ECROU More informationQuantity required : 1 |
|||||||||
|
67 |
224036 - JOINT More informationQuantity required : 1 |
|||||||||
|
70 |
235282 - PERNO More informationQuantity required : 1 |
|||||||||
|
71 |
L3525115 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
|
74 |
830502 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
75 |
493835 - ACCOUPLEMENT More informationQuantity required : 1 |
|||||||||
