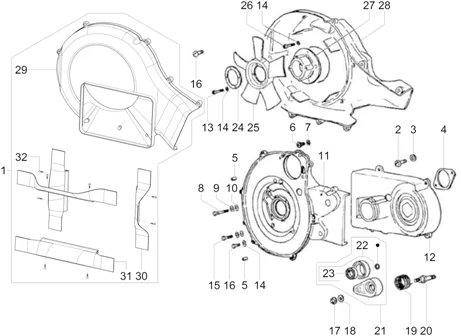

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007 PIAGGIO VU

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - refoidissement carter
Search
616957 - CANALISATION

1
P2R reference P2R reference 111066
Maker reference Maker reference 616957

616957 - CANALISATION

More information

Quantity required : 1

018553 - VIS

2
P2R reference P2R reference 65440
Maker reference Maker reference 0185535

018553 - VIS

More information

Quantity required : 5

018553 - VIS

3
P2R reference P2R reference 65440
Maker reference Maker reference 0185535

018553 - VIS

More information

Quantity required : 1

224699 - JOINT

4
P2R reference P2R reference 111358
Maker reference Maker reference 224699

224699 - JOINT

More information

Quantity required : 1

168409 - GRANO DI RIFER

5
P2R reference P2R reference 112751
Maker reference Maker reference 168409

168409 - GRANO DI RIFER

More information

Quantity required : 3

1A003111 - VIS M5X10

6
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

1A003111 - VIS M5X10

More information

Quantity required : 2

1A003111 - VIS M5X10

6
P2R reference P2R reference 109024
Maker reference Maker reference 0185755

1A003111 - VIS M5X10

More information

Quantity required : 2

006966 - RONDELLE S00696600

7
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

006966 - RONDELLE S00696600

More information

Quantity required : 2

018583 - VIS

8
P2R reference P2R reference 65444
Maker reference Maker reference 0185835

018583 - VIS

More information

Quantity required : 3

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

9
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 3

003058 - RONDELLE S00305800

10
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 3

SUPPORT

11
P2R reference P2R reference
Maker reference Maker reference 830776

SUPPORT

COURROIE

12
P2R reference P2R reference
Maker reference Maker reference 493836

COURROIE

709674 - VIS

13
P2R reference P2R reference 68497
Maker reference Maker reference 709674

709674 - VIS

More information

Quantity required : 4

006976 - RONDELLE S00697600

14
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

006976 - RONDELLE S00697600

More information

Quantity required : 11

SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921-

15
P2R reference P2R reference 67371
Maker reference Maker reference 598921

SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921-

More information

Quantity required : 1

015760 - VIS S01577400

16
P2R reference P2R reference 65393
Maker reference Maker reference 0157605

015760 - VIS S01577400

More information

Quantity required : 11

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

17
P2R reference P2R reference 66225
Maker reference Maker reference 289519

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

More information

Quantity required : 1

L7701212 - RONDELLE

18
P2R reference P2R reference 113280
Maker reference Maker reference L7701212

L7701212 - RONDELLE

More information

Quantity required : 1

L5801609 - RESSORT

19
P2R reference P2R reference 118430
Maker reference Maker reference L5801609

L5801609 - RESSORT

More information

Quantity required : 1

L6231234 - PIN

20
P2R reference P2R reference 111500
Maker reference Maker reference L6231234

L6231234 - PIN

More information

Quantity required : 1

L4110034 - PLAQUE

21
P2R reference P2R reference 115874
Maker reference Maker reference L4110034

L4110034 - PLAQUE

More information

Quantity required : 1

PULLEY-FOR BELT TENSIONER "PIAGGIO GENUINE PART" APE CALESSINO, PM601, DIESEL -830717-

22
P2R reference P2R reference 121956
Maker reference Maker reference 830717

PULLEY-FOR BELT TENSIONER "PIAGGIO GENUINE PART" APE CALESSINO, PM601, DIESEL -830717

More information

Quantity required : 1

ASTUCCIO A RUL

23
P2R reference P2R reference
Maker reference Maker reference 830414

ASTUCCIO A RUL

832737 -

24
P2R reference P2R reference 117079
Maker reference Maker reference 832737

832737 -

More information

Quantity required : 1

L9718299 - VOLANT

25
P2R reference P2R reference 116306
Maker reference Maker reference L9718299

L9718299 - VOLANT

More information

Quantity required : 1

709674 - VIS

26
P2R reference P2R reference 68497
Maker reference Maker reference 709674

709674 - VIS

More information

Quantity required : 5

832736 - SUPPORT

27
P2R reference P2R reference 121472
Maker reference Maker reference 832736

832736 - SUPPORT

More information

Quantity required : 1

L2569699 - ELEMENT CONV.

28
P2R reference P2R reference 122865
Maker reference Maker reference L2569699

L2569699 - ELEMENT CONV.

More information

Quantity required : 1

L2569698 - CANALISATION

29
P2R reference P2R reference 119061
Maker reference Maker reference L2569698

L2569698 - CANALISATION

More information

Quantity required : 1

613215 - JOINT

30
P2R reference P2R reference 110884
Maker reference Maker reference 613215

613215 - JOINT

More information

Quantity required : 2

613216 - JOINT

31
P2R reference P2R reference 110885
Maker reference Maker reference 613216

613216 - JOINT

More information

Quantity required : 2

32
P2R reference P2R reference
Maker reference Maker reference 6132125
