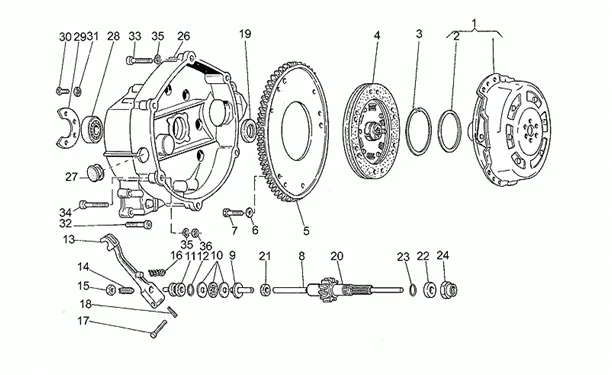

Moteur : 34.28 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_34.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/9/1/img/131391.jpg)
1 |
CLUTCH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, -GU32080310- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/1/0/img/129510.jpg)
2 |
CLUTCH CUP "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA -GU19083462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/4/3/img/132143.jpg)
3 |
GU90272075 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/9/2/img/131392.JPG)
4 |
CLUTCH DISC "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 750 BREVA, NEVADA, V-7 -GU32084410- More informationQuantity required : 1 |
||||||
5 |
GU19067900 - COURONNE DENTEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
6 |
AP8152105 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
7 |
GU98084316 - VIS M6X16 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/6/3/img/129763.jpg)
8 |
CLUTCH PUSH ROD "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU20085720- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/0/7/img/125107.jpg)
9 |
CLUTCH INNER BODY "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU14086000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/1/7/img/98017.jpg)
10 |
CLUTCH THRUST BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -2A000376- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/9/7/img/129197.jpg)
11 |
CLUTCH OUTER BODY "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU14086100- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/0/img/132220.jpg)
12 |
GU90706170 - JOINT TORIQUE 17,13X2,62 More informationQuantity required : 1 |
||||||
|
13 |
GU14090201 - DEBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/0/img/129200.jpg)
14 |
SCREW-FOR CLUTCH LEVER "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME MOTO-GUZZI -GU14090400- More informationQuantity required : 1 |
||||||
|
15 |
GU92602508 - ECROU M8X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/4/img/132644.jpg)
16 |
LEVER RETURN SPRING -GU94321105- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/6/img/127806.jpg)
17 |
PIN FOR CLUTCH FORK "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI -2A000384- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
18 |
GU95500222 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/8/0/img/132180.jpg)
19 |
GU90403245 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
20 |
GU19210760 - ARBRE INTERMEDIAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/7/img/132157.jpg)
21 |
GU90400616 - BAGUE D'ETANCHEITE 6X16X7 More informationQuantity required : 1 |
||||||
|
22 |
1A008627 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/8/img/132228.JPG)
23 |
GU90706235 - JOINT TORIQUE 23,52X1,78 More informationQuantity required : 1 |
||||||
|
24 |
1A014685 - BAGUE More informationQuantity required : 1 |
||||||
|
24 |
1A014685 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
27 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/9/img/132389.jpg)
28 |
BEARING FOR CLUTCH CASE (25X52X15) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA -GU92201225- More informationQuantity required : 1 |
||||||
|
29 |
GU19203460 - PLAQUE FIXATION PALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
30 |
GU98084314 - VIS M6X14 More informationQuantity required : 3 |
||||||
|
31 |
AP8152105 - RONDELLE More informationQuantity required : 3 |
||||||
|
32 |
GU98680330 - VIS TCEI M6X30 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
33 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 5 |
||||||
|
34 |
GU98620450 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
35 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
|
36 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
