Vehicle Exploded View - MOTO-GUZZI 65 GT 650 1987-1989
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

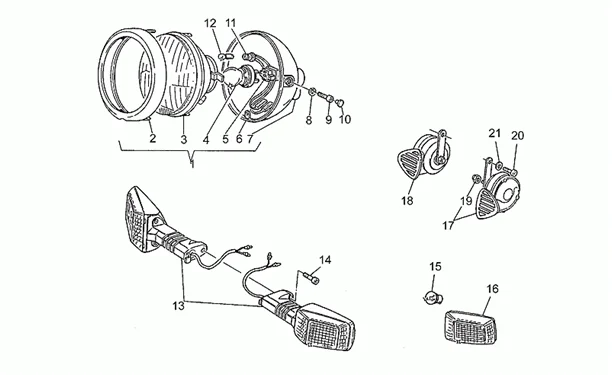

Chassis : 33.05 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_33.05.PNG)
1 |
GU28740533 - FEU AVANT More informationQuantity required : 1 |
||||||
|
2 |
GU19740454 - CADRE PHARE More informationQuantity required : 1 |
||||||
|
3 |
GU18740435 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
4 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723 More informationQuantity required : 1 |
||||||
|
5 |
GU14756255 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
6 |
GU23740418 - CALOTTE DE PHARE More informationQuantity required : 1 |
||||||
|
7 |
GU19740404 - COUVERCLE More informationQuantity required : 1 |
||||||
|
8 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
|
10 |
GU23943510 - BOUCHON More informationQuantity required : 2 |
||||||
|
11 |
GU17740405 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
12 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
|
||||||
|
15 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
GU29743753 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
19 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
GU98822314 - VIS More informationQuantity required : 2 |
||||||
|
21 |
Rondelle évent. |
