Vehicle Exploded View - MOTO-GUZZI 65 GT 650 1987-1989
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

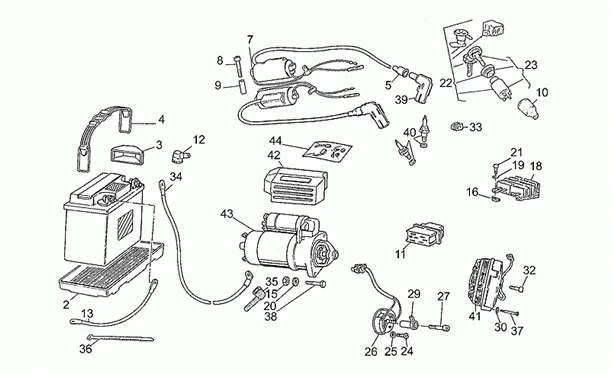

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_33.01.PNG)
2 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU14705350 - COIN BATTERIE More informationQuantity required : 1 |
||||||
|
4 |
GU19704800 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
5 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
7 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- More informationQuantity required : 2 |
||||||
|
10 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
||||||
|
11 |
GU28712500 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
12 |
GU23707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
13 |
GU19748400 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
15 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
16 |
GU92660501 - ECROU EN CAGE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
19 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 2 |
||||||
|
20 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
21 |
GU98622216 - VIS More informationQuantity required : 2 |
||||||
|
23 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
25 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
26 |
GU29722270 - CAPTEUR PHASE/TOURS More informationQuantity required : 1 |
||||||
|
27 |
GU98622318 - VIS M6X18 More informationQuantity required : 1 |
||||||
|
29 |
GU27721037 - ROTOR More informationQuantity required : 1 |
||||||
|
30 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
33 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
34 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
35 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
36 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 20 |
||||||
|
37 |
GU28712459 - VIS More informationQuantity required : 3 |
||||||
|
38 |
GU98052435 - VIS M8X35 More informationQuantity required : 2 |
||||||
|
39 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
40 |
SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085- More informationQuantity required : 2 |
||||||
|
42 |
GU19733350 - PROTECTION DEMMAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
43 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" VALEO FOR MOTO-GUZZI -GU30730711- More informationQuantity required : 1 |
||||||
|
44 |
GU14730570 - KIT DE DEMARREUR More informationQuantity required : 1 |
