Vehicle Exploded View - MOTO-GUZZI 65 GT 650 1987-1989
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

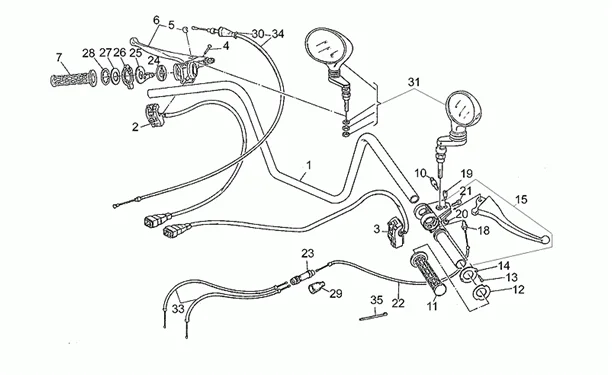

Chassis : 33.12 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_33.12.PNG)
1 |
GUIDON |
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
GU98260425 - VIS More informationQuantity required : 2 |
||||||
|
5 |
GU29608750 - BARILLET DE CABLE More informationQuantity required : 1 |
||||||
|
6 |
GU29605550 - COMMANDE EMBRAY More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
10 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
GU29604650 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
GU98280410 - VIS More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
GU29999250 - COMMANDE DU GAZ More informationQuantity required : 1 |
||||||
|
18 |
GU29603750 - REGLAGE More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
GU92601206 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
GU98612316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
22 |
GU23117570 - CABLE DU GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/5/img/130865.jpg)
23 |
GU30607910 - DEDOUBLEREUR More informationQuantity required : 1 |
||||||
|
24 |
BAGUE |
||||||
|
25 |
|
||||||
|
26 |
GU29132350 - COMMANDE DU STARTER More informationQuantity required : 1 |
||||||
|
27 |
GU29132650 - RONDELLE More informationQuantity required : 1 |
||||||
|
28 |
BAGUE |
||||||
|
29 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
|
31 |
|
||||||
|
33 |
GU23117770 - CABLE DU GAZ More informationQuantity required : 2 |
||||||
|
34 |
GU23093070 - CABLE COM.EMBRAYAGE More informationQuantity required : 1 |
||||||
|
35 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
35 |
GU61609630 - COLLIER More informationQuantity required : 1 |
