Vehicle Exploded View - MOTO-GUZZI 65 GT 650 1987-1989
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

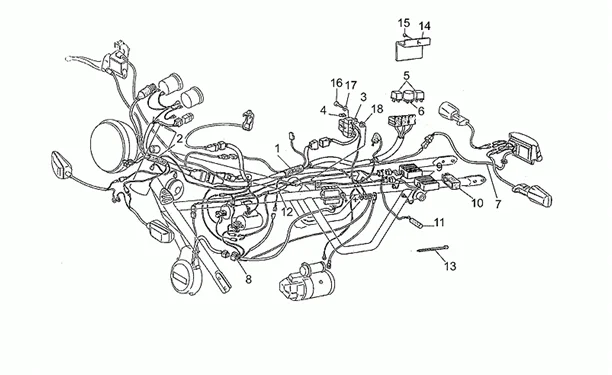

Chassis : 33.09 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/459/65_GT_650_1987-1989_33.09.PNG)
2 |
GU23747211 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
4 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
6 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
9 |
GU23721494 - CENTRALE ELECTRONIQUE More informationQuantity required : 2 |
||||||
|
10 |
GU27723835 - SUPPORT SIRENE More informationQuantity required : 2 |
||||||
|
11 |
GU27710435 - CONDENSATEUR More informationQuantity required : 1 |
||||||
|
12 |
GU31722140 - CABLES More informationQuantity required : 1 |
||||||
|
13 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
13 |
GU61609630 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
GU98622216 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
17 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 2 |
||||||
|
18 |
GU92660501 - ECROU EN CAGE More informationQuantity required : 1 |
