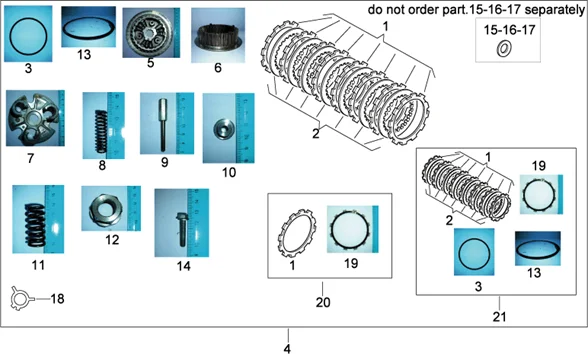

Moteur : 29.51 EMBRAGUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_29.51.PNG)
1 |
853727 - DISQUE Plus d'informationsQuantité requise : 7 |
||||||
|
2 |
853728 - DISQUE Plus d'informationsQuantité requise : 7 |
||||||
|
3 |
855381 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
855376 - EMBRAYAGE CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
855383 - MOYEU Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
855384 - MOYEU Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
855385 - PLATEAU Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
855386 - RESSORT Plus d'informationsQuantité requise : 3 |
||||||
|
9 |
855387 - VIS M5X35 Plus d'informationsQuantité requise : 3 |
||||||
|
10 |
855388 - ENTRETOISE Plus d'informationsQuantité requise : 3 |
||||||
|
11 |
855389 - RESSORT Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
855390 - ECROU M12X1,25 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
855382 - RESSORT A GODET Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
855392 - VIS M25X5 CH 8 Plus d'informationsQuantité requise : 3 |
||||||
|
15 |
855393 - RONDELLE PLATE 13X18X1 Plus d'informationsQuantité requise : 3 |
||||||
|
16 |
855394 - RONDELLE PLATE 28X14X2,5 Plus d'informationsQuantité requise : 3 |
||||||
|
17 |
855395 - RONDELLE PLATE 5,5X12X1 Plus d'informationsQuantité requise : 3 |
||||||
|
18 |
855391 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
855380 - DISQUE EMBRAYAGE MENANT Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
855782 - DISQUE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
855785 - DISQUE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
