Eclatés de véhicule - APRILIA SXV 550 Vdb-Merriman 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

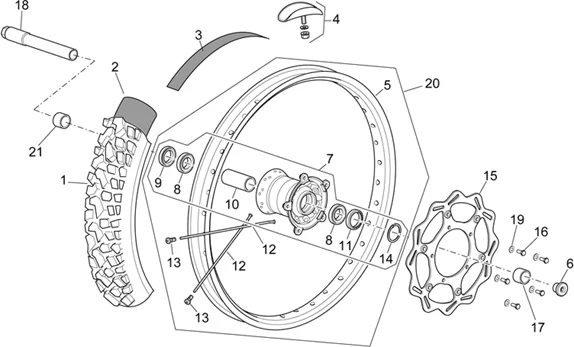

Chassis : 28.22 ROUE AV.I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/3/8/img/97338.jpg)
1 |
AP9100507 - PNEUMATICO ANTERIORE 90/90 21" Plus d'informationsQuantité requise : 1 |
||||||
2 |
AP9100458 - CAMERA D'ARIA LEGGERA 21" Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
FOND DE JANTE ORIGINE PIAGGIO 21¨ (LARGEUR 27) -AP8109001 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP9100457 - STAFFA BLOCC.PNEUM.ANT.1,60 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
855283 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP9100262 - CERCHIO RUOTA ANTER. 1,6X21" Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP9100171 - TAPPO M22 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
855286 - MOYEU AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
853627 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
855289 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
853627 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
855437 - RAYON Plus d'informationsQuantité requise : 9 |
||||||
|
12 |
855439 - RAYON Plus d'informationsQuantité requise : 9 |
||||||
|
13 |
853621 - ECROU RAY Plus d'informationsQuantité requise : 36 |
||||||
|
14 |
853629 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
855294 - DOUILLE ENTRETOISE EXTERNE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
855278 - AXE DE ROUE AV Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
19 |
RONDELLE ELASTIQUE COURBE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -658830 Plus d'informationsQuantité requise : 5 |
||||||
|
20 |
855282 - ROUE AV CPL 21" Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
855292 - DOUILLE ENTRETOISE EXTERNE Plus d'informationsQuantité requise : 1 |
