Eclatés de véhicule - APRILIA SXV 550 Vdb-Merriman 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

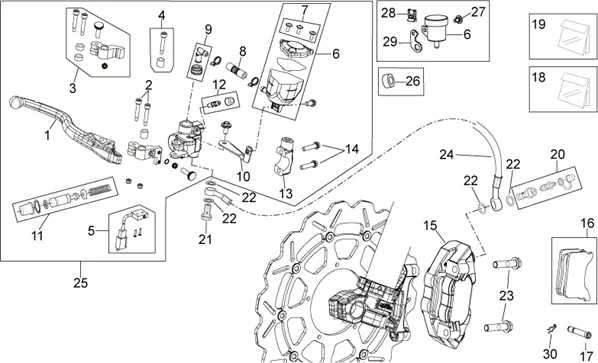

Chassis : 28.27 SYS.FREIN AVANT II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.27.PNG)
1 |
Levier frein |
||||||
|
2 |
AP9100921 - VITE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/4/3/6/img/96436.jpg)
3 |
KIT REVISION MAITRE CYLINDRE DE FREIN AVANT ORIGINE PIAGGIO APRILIA 650 PEGASO, 450-550 RXV, SXV -851367 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP9100919 - KIT PREMENTE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP9100918 - INTERRUTTORE STOP Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8133873 - SERBATOIO OLIO FRENI Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP9100916 - VITI COPERCHIO Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP9100915 - TUBO FRENO Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP9100914 - RACCORDO POMPA Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
851368 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP9100912 - KIT REVISIONE PISTONCINO Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP9100911 - KIT SPURGO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP9100910 - CAVALLOTTO Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
853649 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
853653 - ETRIER DE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
853815 - JEU PLAQUETTES FREINS Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
894822 - PIVOT Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP9100908 - KIT REVISIONE PINZA Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP9100909 - KIT PISTONCINI Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
AP9100905 - KIT REVISIONE SPURGO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
21 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
22 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 4 |
||||||
|
23 |
853656 - VIS M10X1.25 Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
853651 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
855362 - MA?T. CYL. FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
855364 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
27 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
AP9100964 - PIASTRINA AGGANGIO MOLLE Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
894823 - GOUPILLE Plus d'informationsQuantité requise : 1 |
