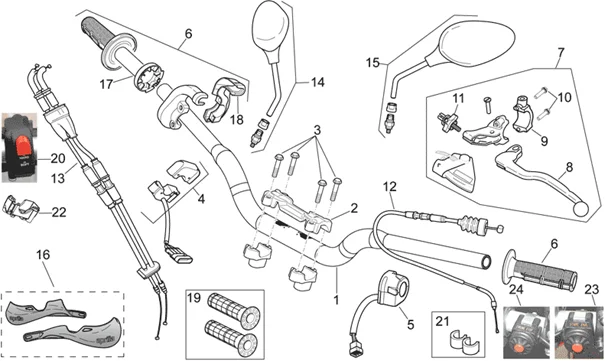

Chassis : 28.17 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.17.PNG)
1 |
855049 - GUIDON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
853567 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
853534 - VIS M8X35 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
3 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152289 Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
AP9100514 - DEVIOLUCI DX Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
855043 - DEVIATEUR FEUX GCHE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
855271 - COMMANDE GAZ+POIGNEE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP9100481 - COMANDO GAS COMPL.DI MANOPOLE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
855270 - 'COMMANDE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP9100484 - LEVIER EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP9100939 - LEVA FRIZIONE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP9100940 - CAVALLOTTO Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
853598 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
896503 - REGULATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
853662 - TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
855272 - TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP9100802 - TRASMISSIONE COMANDO GAS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
14 |
RETROVISEUR DROIT ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>/900 SHIVER 2017>/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/ MOTO GUZZI STELVIO 2008-2017 -AP8104921 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
15 |
RETROVISEUR GAUCHE ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>/900 SHIVER 2017>/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/ MOTO GUZZI STELVIO 2008-2017 -AP8104922 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
RXV HANDGUARDS |
||||||
|
16 |
851084 - MOTARD HANDGUARDS Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
851359 - TUBE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
851360 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/4/img/72264.jpg)
19 |
REVETEMENT POIGNEE 50 A BOITE ORIGINE GILERA 50 SMT, RCR 2011>/DERBI SENDA 2010>/ APRILIA 50 SX, RX 2011>, 450-550 SXV, RXV 2010> (PAIRE) -AP8218628 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
858247 - DISPOSITIF ELECTRIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
21 |
CLIPS RESSORT FIXATION FAISCEAU ORIGNE APRILIA-MOTO GUZZI COMMUN A LA GAMME -AP9100519 Plus d'informationsQuantité requise : 3 |
||||||
|
22 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/9/7/img/97297.jpg)
23 |
BOUTON COUPE CIRCUIT ORIGINE APRILIA 450-550 RXV, SXV -AP9100425 Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
AP9100426 - BOUTON DEMARRAGE Plus d'informationsQuantité requise : 1 |
