Eclatés de véhicule - APRILIA SXV 550 Vdb-Merriman 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

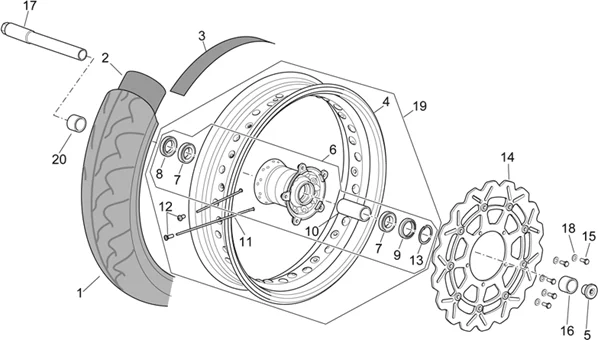

Chassis : 28.23 ROUE AV.II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/637/SXV_550_Vdb-Merriman_2008_28.23.PNG)
1 |
853618 - PNEU Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8109306 - CAMERA D'ARIA ANTERIORE 17" Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8109309 - FLAP RUOTA POSTERIORE 17" Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
855452 - JANTE AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP9100171 - TAPPO M22 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
855445 - MOYEU ROUE AV Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
853626 - ROULEMENT Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
853627 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
853627 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
855289 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
855449 - RAYON ?3,5/3/3,5 Plus d'informationsQuantité requise : 8 |
||||||
|
11 |
855450 - RAYON ?3,5/3/3,5 Plus d'informationsQuantité requise : 8 |
||||||
|
11 |
855451 - RAYON ?3,5/3/3,5 Plus d'informationsQuantité requise : 8 |
||||||
|
12 |
853621 - ECROU RAY Plus d'informationsQuantité requise : 32 |
||||||
|
13 |
853629 - CICLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
855366 - DISQUE FREIN AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
853595 - VIS M6X15 Plus d'informationsQuantité requise : 5 |
||||||
|
16 |
855294 - DOUILLE ENTRETOISE EXTERNE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP9100230 - PERNO RUOTA ANTERIORE L:221,5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
18 |
RONDELLE ELASTIQUE COURBE (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -658830 Plus d'informationsQuantité requise : 5 |
||||||
|
19 |
855351 - ROUE AV CPL 16,5" RXV/SXV Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
855292 - DOUILLE ENTRETOISE EXTERNE Plus d'informationsQuantité requise : 1 |
