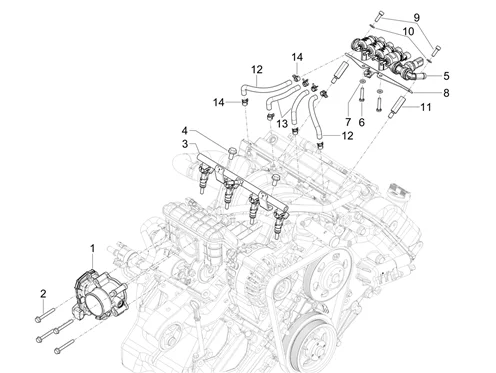

Moteur : 01.13 CORPS PAPILLON ET INJECTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/998/Porter_NP6_(TW_3000)_01.13.png)
1 |
1A013135 CORPS A PAPILLON CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A012775 VIS A TETE HEXAGONALE BRIDEE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/4/5/img/173145.jpg)
3 |
RAMPE INJECTION ORIGINE PIAGGIO PORTER NP6 2021> -1A013136 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1A005466 VIS FIX. M8X16 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
1A018776 RAIL Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A019300 PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
1A018777 SPACER Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
TUYAU FLEXIBLE DE RAMPE ALIMENTATION ORIGINE PIAGGIO PORTER NP6>2021-1A021657- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
1A018779 HOSE LPG CNG FLEXIBLE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
1F000320 COLLIER Plus d'informationsQuantité requise : 8 |
